  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

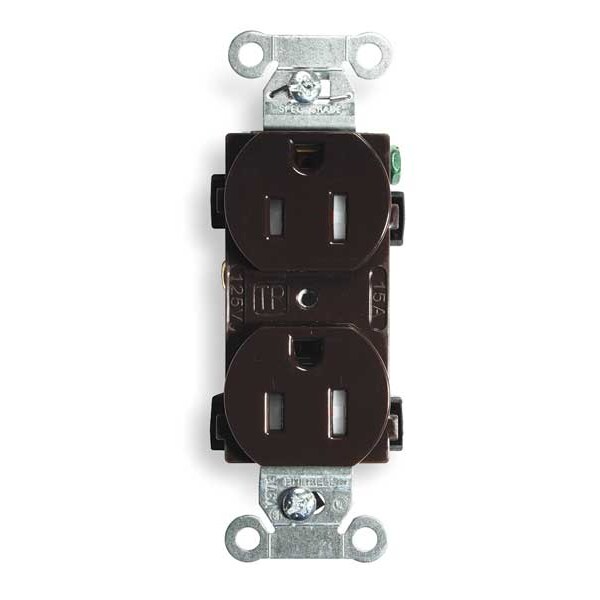

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded BR15TR - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # BR15TR

  • Zoro # G0748562

product price: $8.49
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BR15TR
Zoro #
G0748562
UPC #
783585144047
Country of Origin
China

Dimensions

Dimensions
3.3 in x 1.58 in x 1.16 in
Display Size
Standard Sized Product
Wire Size
#14 AWG to #10 AWG
Minimum Wire Size
14 AWG
Face Plate Height
2.7 in
Maximum Wire Size
10 AWG
Mount Hole Center-to-Center Height
3.3 in
Face Plate Width
1.3 in
Overall Depth
1.2 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Grounding
Grounded
Housing Color
Brown
Mount Type
Flush
Standards
CSA Certified C22.2, NEMA WD-6, UL 498 File E2186
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Voltage
125VAC
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Outlet Type
Duplex
Number of Gangs
1
NEMA Configuration
5-15
Power Indicator
No
Weather Resistant - Plugs and Receptacles
No
Mounting Type - Plugs and Receptacles
Flush
Application Environment
Commercial
Sub-Category
Duplex Receptacles
HP
1/2 hp
Weather Resistant
No
Material
Nylon
Wiring Method - Plugs and Receptacles
Back and Side
Tamper Resistant
Yes
Wiring Method
Back, Side
Outlet Type - Plugs and Receptacles
Standard Duplex
Color
Brown
Mounting Type
Flush
Corrosion Resistant
No
Surge Suppression
No
Connectivity
Back and Side Wired
Nema Rating
5-15R
Brand
Hubbell Wiring Device-Kellems
Style
Smooth Face
Application
Commercial Specification Grade
Amperage
15 A
Mounting Hardware Material
Screw Mounting
Type
Tamper-Resistant
Series
Commercial Specification Grade
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Dielectric Strength
Withstands 2,000V minimum
Environmental Rating
Indoor Dry Unless Protected By Additional Means
Maximum Horsepower
0.5
Carton Quantity
10
Number Of Wires
3-Wire
Wattage
1875 W
Shrouded
No
Includes Mounting Hardware
Yes
Includes
Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover
Grade
Federal Specification
Market
Commercial, Industrial
For Location
Indoor
Horsepower Rating
1/2 hp
Minimum Operating Temperature
-40 Degrees F
Housing Material
Nylon
GFCI
No
Cover Type
No Cover
Connection Orientation
Straight
AFCI
No
Surge Protection
No
UL 94 Flammability Rating
V-2
Maximum Operating Temperature
167 Degrees F
Contact Material
Brass
NEMA Enclosure Rating
1
Polarized
Yes
Flammability
UL 94 V2.
Poles and Wires
2 Pole, 3-Wire Grounding
Power Contacts Material
.030" (.8) Brass
Device Color
Brown
Mounting Screw Material
Steel-Zinc Plated
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Auto Ground Clip Material
Stainless Steel
Other Available Colors
Brown, Ivory, White, Office White, Almond, Light Almond, Gray, Black
Receptacle Grade
Specification Grade Commercial Series, Tamper Resistant
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
Standard
NEMA
Rating
15A, 125V
Dielectric Voltage
Withstands 2,000V minimum
Face Shape
Traditional
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Base Material
Nylon
Current Interrupting
Certified for current interrupting at full rated current
Mounting Strap Material
.040" (1) Steel (Galvanized)
Horsepower
0.5
Certification
UL Listed to UL498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-1 Heavy Duty and WD-6 requirements, Certified to CSA, C22.2, No. 42 file 285.
Receptacle Style
Duplex
Top Material
Nylon

Description

• Tamper-resistant shutter complies with national electrical code requirements
• Smooth face
• Wrap-around galvanized steel straps
• Triple wipe contacts
