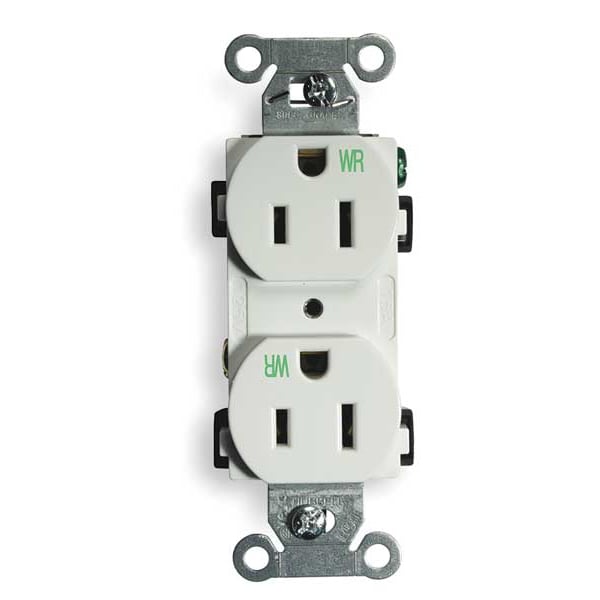

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded BR15WHIWR - main
Shop HUBBELL WIRING DEVICE-KELLEMS

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # BR15WHIWR

  • Zoro # G3239537

product price:  $6.89
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BR15WHIWR
Zoro #
G3239537
UPC #
783585144511
Country of Origin
China

Dimensions

Wire Size
#14 AWG to #10 AWG
Width
0.83 in
Length
1.32 in
Dimensions
1.32 in x 0.83 in x 3.28 in
Height
3.28 in
Display Size
Standard Sized Product
Overall Depth
3.3 in
Maximum Wire Size
10 AWG
Face Plate Width
1.3 in
Minimum Wire Size
14 AWG
Face Plate Height
2.7 in
Mount Hole Center-to-Center Height
3.3 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
White
Mount Type
Flush
Standards
CSA Certified, NEMA WD-1, NEMA WD-6, UL Listed
Resistance Properties
Weather Resistant
Flange Type
Non-Flanged
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Weather Resistant - Plugs and Receptacles
Yes
Surge Suppression
No
Mounting Type - Plugs and Receptacles
Flush
Sub-Category
Duplex Receptacles
Color
White
Corrosion Resistant
No
Voltage
125VAC
Weather Resistant
Yes
Outlet Type - Plugs and Receptacles
Standard Duplex
NEMA Configuration
5-15
Power Indicator
No
HP
1/2 hp
Application Environment
Commercial
Mounting Type
Flush
Material
Nylon
Tamper Resistant
No
Number of Gangs
1
Wiring Method - Plugs and Receptacles
Back and Side
Outlet Type
Duplex
Maximum Horsepower
0.5
UPC
783585000000
Weight
0.15 lb
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Nema Rating
5-15R
Dielectric Strength
Withstands 2,000V minimum
Application
Commercial Specification Grade
Carton Quantity
10
Number Of Wires
3-Wire
Wattage
1875 W
Mounting Hardware Material
Screw Mounting
Series
Commercial Specification Grade
Style
Smooth Face
Environmental Rating
Weather Resistant
Type
Weather Resistant
Amperage
15 A
Connectivity
Back and Side Wired
Brand
Hubbell Wiring Device-Kellems
GFCI
No
UL 94 Flammability Rating
V-2
Shrouded
No
Horsepower Rating
1/2 hp
Includes Mounting Hardware
Yes
Market
Commercial, Industrial
Maximum Operating Temperature
167 Degrees F
Includes
Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover
Cover Type
No Cover
Connection Orientation
Straight
AFCI
No
Polarized
Yes
NEMA Enclosure Rating
1
Surge Protection
No
Grade
Federal Specification
Housing Material
Nylon
Minimum Operating Temperature
-40 Degrees F
Contact Material
Brass
Auto Ground Clip Material
Stainless Steel
Power Contacts Material
.030" (.8) Brass
Receptacle Grade
Specification Grade Commercial Series, Weather Resistant
Device Color
White
Poles and Wires
2 Pole, 3-Wire Grounding
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current
Mounting Strap Material
.040" (1) Steel (Galvanized)
Receptacle Style
Duplex
Flammability
UL 94 V2.
Horsepower
0.5
Mounting Screw Material
Steel-Zinc Plated
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Base Material
Nylon
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Current Interrupting
Certified for current interrupting at full rated current
Certification
UL Listed to UL498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-1 Heavy Duty and WD-6 requirements, Certified to CSA, C22.2, No. 42 file 285.
Face Shape
Traditional
Standard
NEMA
Rating
15A, 125V
Dielectric Voltage
Withstands 2,000V minimum
Other Available Colors
Brown, Ivory, White, Office White, Almond, Light Almond, Gray, Black
Top Material
Nylon
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-2 Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Industry Standard(s)
Certified to CSA C22.2, No. 42 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Environmental Conditions
Weather Resistant
Horsepower - Maximum
0.5
Material - Mounting Hardware
Screw Mounting
OEM Brand Name
Hubbell Wiring Device-Kellems

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Housing Color White, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Weather Resistant, Standards CSA Certified C22.2, Federal Specification W-C-596, NEMA WD-6, UL 498, Voltage Rating 125V AC
