  6. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

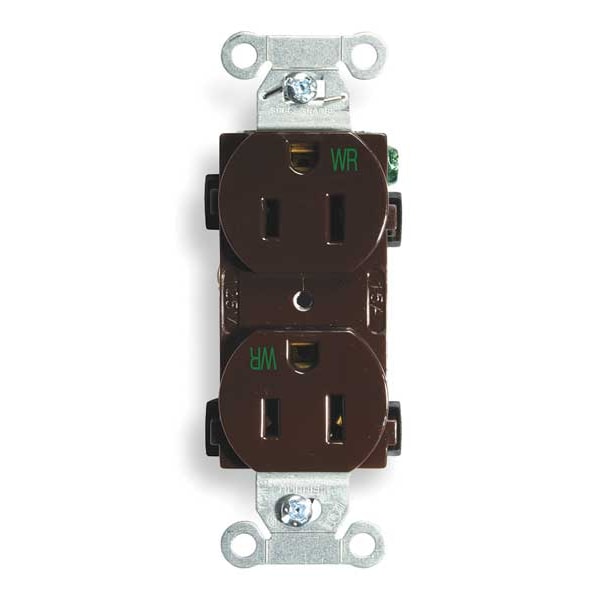

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded BR15WR - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # BR15WR

  • Zoro # G2641091

product price:  $7.55
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
BR15WR
Zoro #
G2641091
UPC #
783585144467
Country of Origin
China

Dimensions

Wire Size
#14 AWG to #10 AWG
Display Size
Standard Sized Product
Dimensions
1.32 in x 0.83 in x 3.28 in
Face Plate Width
1.3 in
Overall Depth
3.3 in
Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG
Mount Hole Center-to-Center Height
3.3 in
Face Plate Height
2.7 in
Height
3.28 in
Length
1.32 in
Width
0.83 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Brown
Mount Type
Flush
Standards
CSA Certified, NEMA WD-6, UL Listed
Resistance Properties
Weather Resistant
Flange Type
Non-Flanged
Tamper Resistant
No
Number of Gangs
1
Wiring Method - Plugs and Receptacles
Back and Side
Mounting Type - Plugs and Receptacles
Flush
NEMA Configuration
5-15
Voltage
125VAC
Application Environment
Commercial
HP
1/2 hp
Weather Resistant
Yes
Weather Resistant - Plugs and Receptacles
Yes
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Surge Suppression
No
Power Indicator
No
Material
Nylon
Corrosion Resistant
No
Sub-Category
Duplex Receptacles
Mounting Type
Flush
Outlet Type - Plugs and Receptacles
Standard Duplex
Color
Brown
Outlet Type
Duplex
Wattage
1875 W
Series
Commercial Specification Grade
Connectivity
Back and Side Wired
Carton Quantity
10
Brand
Hubbell Wiring Device-Kellems
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Type
Weather Resistant
Number Of Wires
3-Wire
Dielectric Strength
Withstands 2,000V minimum
Application
Commercial Specification Grade
Amperage
15 A
Maximum Horsepower
0.5
Mounting Hardware Material
Screw Mounting
Style
Smooth Face
Nema Rating
5-15R
Environmental Rating
Weather Resistant
Market
Commercial, Industrial
Primary Resistance Properties
Weather Resistant - Weather Resistant - 15 A
Maximum Operating Temperature
167 Degrees F
Polarized
Yes
Includes
Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover
AFCI
No
NEMA Enclosure Rating
1
Grade
Federal Specification
Shrouded
No
Contact Material
Brass
Includes Mounting Hardware
Yes
Housing Material
Nylon
Surge Protection
No
Number of Poles & Wires
2 Pole / 3 Wire
Key Resistance Properties
Weather Resistant
Horsepower Rating
1/2 hp
UL 94 Flammability Rating
V-2
Additional Electrical Protection
Standard Protection
Cover Type
No Cover
Minimum Operating Temperature
-40 Degrees F
Wire Connection Types
Screw Terminals
GFCI
No
Connection Orientation
Straight
Flammability
UL 94 V2.
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Standard
NEMA
Receptacle Style
Duplex
Current Interrupting
Certified for current interrupting at full rated current
Other Available Colors
Brown, Ivory, White, Office White, Almond, Light Almond, Gray, Black
Base Material
Nylon
Poles and Wires
2 Pole, 3-Wire Grounding
Face Shape
Traditional
Top Material
Nylon
Mounting Screw Material
Steel-Zinc Plated
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current
Horsepower
0.5
Receptacle Grade
Specification Grade Commercial Series, Weather Resistant
Auto Ground Clip Material
Stainless Steel
Dielectric Voltage
Withstands 2,000V minimum
Mounting Strap Material
.040" (1) Steel (Galvanized)
Rating
15A, 125V
Device Color
Brown
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
Certification
UL Listed to UL498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-1 Heavy Duty and WD-6 requirements, Certified to CSA, C22.2, No. 42 file 285.
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Power Contacts Material
.030" (.8) Brass
Industry Standard(s)
Certified to CSA C22.2, No. 42 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Environmental Conditions
Weather Resistant
Material - Mounting Hardware
Screw Mounting
OEM Brand Name
Hubbell Wiring Device-Kellems
Horsepower - Maximum
0.5
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-2 Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Housing Color Brown, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Weather Resistant, Standards CSA Certified C22.2, Federal Specification W-C-596, NEMA WD-6, UL 498, Voltage Rating 125V AC
