  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

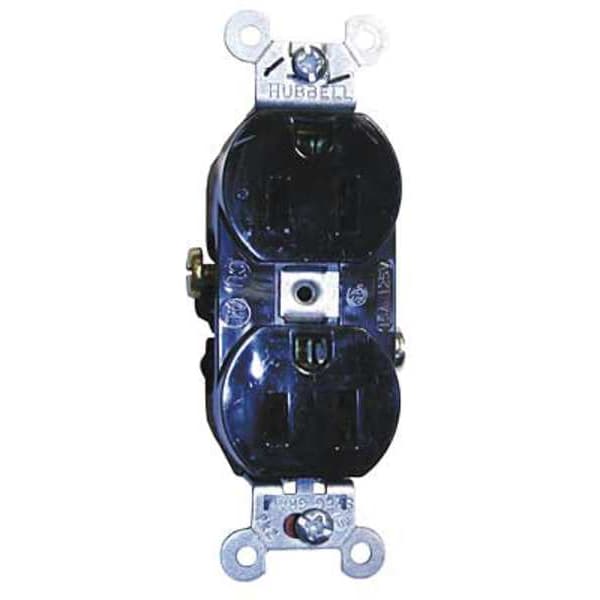

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded CR15BLK - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # CR15BLK

  • Zoro # G3295406

product price: $2.29
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CR15BLK
Zoro #
G3295406
UPC #
783585900186
Country of Origin
China

Dimensions

Maximum Wire Size
10 AWG
Face Plate Width
1.3 in
Face Plate Height
2.7 in
Mount Hole Center-to-Center Height
3.3 in
Overall Depth
3.3 in
Minimum Wire Size
14 AWG
Length
1.32 in
Width
0.83 in
Height
3.28 in
Wire Size
#14 AWG to #10 AWG
Display Size
Standard Sized Product
Dimensions
1.32 in x 0.83 in x 3.28 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Side
Grounding
Grounded
Housing Color
Black
Mount Type
Flush
IP Rating
Not Rated
Standards
CSA Certified, NEMA WD-1, NEMA WD-6, UL Listed
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Material
Nylon
Application Environment
Commercial
Corrosion Resistant
No
HP
1/2 hp
Weather Resistant
No
Tamper Resistant
No
Outlet Type - Plugs and Receptacles
Standard Duplex
Wiring Method - Plugs and Receptacles
Side
Mounting Type
Flush
Mounting Type - Plugs and Receptacles
Flush
Surge Suppression
No
Outlet Type
Duplex
Power Indicator
No
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
NEMA Configuration
5-15
Sub-Category
Duplex Receptacles
Weather Resistant - Plugs and Receptacles
No
Voltage
125VAC
Number of Gangs
1
Type
Duplex
UL 94 Flammability Rating
V-2
For Location
Indoor
Housing Material
Nylon
Includes Mounting Hardware
Yes
NEMA Enclosure Rating
1
Horsepower Rating
1/2 hp
Minimum Operating Temperature
-40 Degrees F
Connection Orientation
Straight
Maximum Operating Temperature
167 Degrees F
Cover Type
No Cover
AFCI
No
Grade
Federal Specification
Includes
Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover
Market
Commercial
GFCI
No
Shrouded
No
Polarized
Yes
Contact Material
Brass
Surge Protection
No
Flammability
UL 94 V2.
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Mounting Strap Material
.040" (1) Steel (Galvanized)
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Terminal Screw Material
#8-32 Brass, Multiple Drive
Power Contacts Material
.031" (.8) Phosphor Bronze
Poles and Wires
2 Pole, 3-Wire Grounding
Base Material
Nylon
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Certification
UL Listed, File E2186, Meets NEMA WD-6 requirements Listed to UL Standard 498, Certified to CSA, C22.2, No. 42
Receptacle Grade
Commercial Series Specification Grade
Mounting Screw Material
Steel-Zinc Plated
Rating
15A, 125V
Current Interrupting
Certified for current interrupting at full rated current
Dielectric Voltage
Withstands 2,000V minimum
Ground Screw Material
#8-32 Brass, Multiple Drive (Green)
Auto Ground Clip Material
.032" (.8) Steel Wire
Horsepower
0.5
Other Available Colors
Brown, Almond, Black, Gray, Ivory, Office White, White, Light Almond
Device Color
Black
Receptacle Style
Duplex
Top Material
Nylon
Face Style
Smooth Face
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
Standard
NEMA
Face Shape
Traditional
Style
Smooth Face
Nema Rating
5-15R
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Wattage
1875 W
OEM Brand Name
Hubbell Wiring Device-Kellems
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-2 Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #14-#10 AWG stranded or solid copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Material - Mounting Hardware
Screw Mounting
Industry Standard(s)
Certified to CSA, C22.2, No. 42 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Application
Commercial Specification Grade
Horsepower - Maximum
0.5
Dielectric Strength
Withstands 2,000V minimum
Series
Commercial Specification Grade

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Housing Color Black, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Standards CSA Certified C22.2, Federal Specification W-C-596, NEMA WD-6, UL 498, Voltage Rating 125V AC, Wire Connection Type Screw Terminals
