  6. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

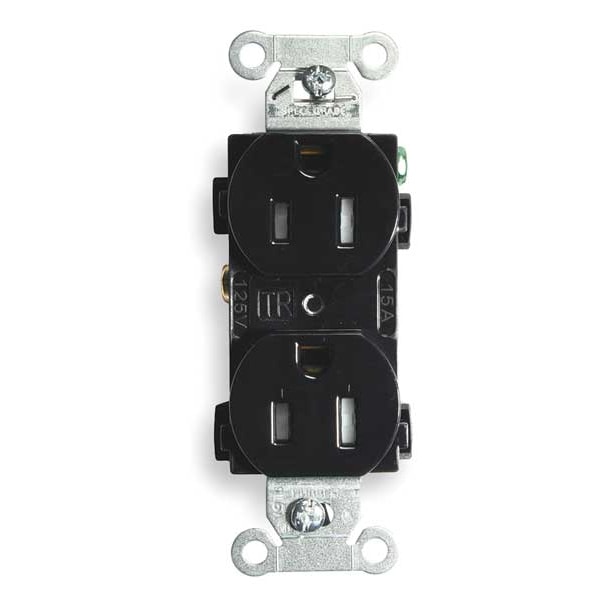

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded CR15BLKTR - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # CR15BLKTR

  • Zoro # G2540115

product price:  $7.49
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CR15BLKTR
Zoro #
G2540115
UPC #
783585144207
Country of Origin
China

Dimensions

Mount Hole Center-to-Center Height
3.3 in
Face Plate Height
2.7 in
Maximum Wire Size
10 AWG
Overall Depth
3.3 in
Minimum Wire Size
14 AWG
Face Plate Width
1.3 in
Display Size
Standard Sized Product
Dimensions
1.32 in x 0.83 in x 3.28 in
Wire Size
#14 AWG to #10 AWG
Length
1.32 in
Height
3.28 in
Width
0.83 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Grounding
Grounded
Housing Color
Black
Mount Type
Flush
Standards
CSA Certified C22.2, NEMA WD-6, UL 498
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Wiring Method - Plugs and Receptacles
Side
Tamper Resistant
Yes
Weather Resistant - Plugs and Receptacles
No
Corrosion Resistant
No
Surge Suppression
No
Power Indicator
No
Mounting Type - Plugs and Receptacles
Flush
Mounting Type
Flush
HP
1/2 hp
NEMA Configuration
5-15
Sub-Category
Duplex Receptacles
Number of Gangs
1
Outlet Type - Plugs and Receptacles
Standard Duplex
Wiring Method
Side
Application Environment
Commercial
Outlet Type
Duplex
Weather Resistant
No
Voltage
125VAC
Material
Nylon
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Type
Duplex
Includes
Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover
Minimum Operating Temperature
-40 Degrees F
AFCI
No
Grade
Federal Specification
Connection Orientation
Straight
Maximum Operating Temperature
167 Degrees F
For Location
Indoor
Polarized
Yes
Market
Commercial
NEMA Enclosure Rating
1
UL 94 Flammability Rating
V-2
Housing Material
Nylon
Includes Mounting Hardware
Yes
Cover Type
No Cover
Surge Protection
No
Contact Material
Brass
GFCI
No
Horsepower Rating
1/2 hp
Shrouded
No
Face Style
Smooth Face
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Power Contacts Material
.031" (.8) Phosphor Bronze
Dielectric Voltage
Withstands 2,000V minimum
Standard
NEMA
Mounting Screw Material
Steel-Zinc Plated
Auto Ground Clip Material
.032" (.8) Steel Wire
Horsepower
0.5
Receptacle Grade
Commercial Series Specification Grade, Tamper Resistant
Rating
15A, 125V
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Other Available Colors
Brown, Almond, Black, Gray, Ivory, Office White, White, Light Almond
Certification
UL Listed, File E2186, Meets NEMA WD-6 requirements Listed to UL Standard 498, Certified to CSA, C22.2, No. 42
Poles and Wires
2 Pole, 3-Wire Grounding
Current Interrupting
Certified for current interrupting at full rated current
Device Color
Black
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Terminal Screw Material
#8-32 Brass, Multiple Drive
Face Shape
Traditional
Top Material
Nylon
Mounting Strap Material
.040" (1) Steel (Galvanized)
Receptacle Style
Duplex
Base Material
Nylon
Ground Screw Material
#8-32 Brass, Multiple Drive
Flammability
UL 94 V2.
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
OEM Brand Name
Hubbell Wiring Device-Kellems
Series
Commercial Specification Grade
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Horsepower - Maximum
0.5
Application
Commercial Specification Grade
Wattage
1875 W
Industry Standard(s)
Certified to CSA, C22.2, No. 42 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Style
Smooth Face
Nema Rating
5-15R
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Material - Mounting Hardware
Screw Mounting
Dielectric Strength
Withstands 2,000V minimum
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-2 Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #14-#10 AWG stranded or solid copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Housing Color Black, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Tamper Resistant, Standards CSA Certified C22.2, NEMA WD-6, UL 498, Voltage Rating 125V AC
