  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

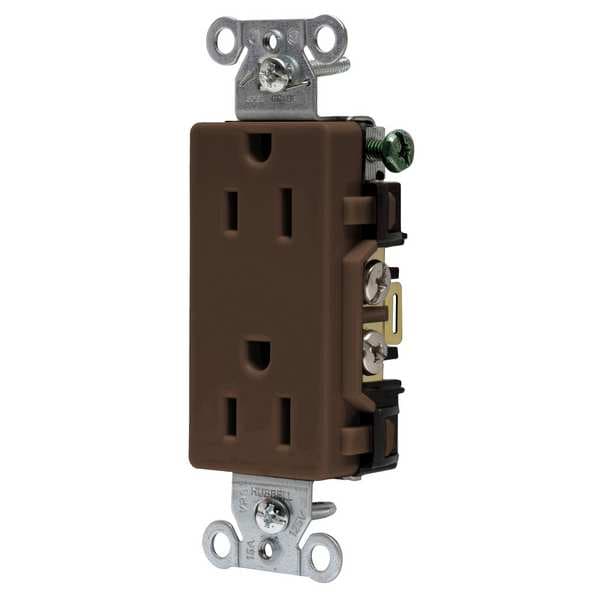

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded DR15 - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # DR15

  • Zoro # G1819763

product price: $6.45
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DR15
Zoro #
G1819763
UPC #
783585127781
Country of Origin
China

Dimensions

Minimum Wire Size
14 AWG
Mount Hole Center-to-Center Height
2.7 in
Overall Depth
3.3 in
Mount Hole Center-to-Center Width
1.3 in
Face Plate Height
2.7 in
Maximum Wire Size
10 AWG
Face Plate Width
1.3 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Brown
Mount Type
Flush
Standards
CSA C22.2 No. 42, NEMA WD-6, UL 498, UL Federal Specification WC-596
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
HP
1/2 hp
Mounting Type - Plugs and Receptacles
Flush
Wiring Method - Plugs and Receptacles
Back and Side
Application Environment
Commercial
Mounting Type
Flush
Sub-Category
Duplex Receptacles
Power Indicator
No
Number of Gangs
1
Outlet Type
Decorator
Corrosion Resistant
No
Tamper Resistant
No
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
NEMA Configuration
5-15
Voltage
125VAC
Weather Resistant
No
Surge Suppression
No
Weather Resistant - Plugs and Receptacles
No
Material
Nylon
Outlet Type - Plugs and Receptacles
Decorator Duplex
Type
Duplex
NEMA Enclosure Rating
1
Minimum Operating Temperature
-40 Degrees F
Includes
Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover
Housing Material
Nylon
For Location
Indoor
Connection Orientation
Straight
Horsepower Rating
1/2 hp
GFCI
No
Polarized
Yes
AFCI
No
Maximum Operating Temperature
167 Degrees F
Includes Mounting Hardware
Yes
Shrouded
No
Market
Commercial, Industrial
Cover Type
No Cover
UL 94 Flammability Rating
V-2
Contact Material
Brass
Surge Protection
No
Grade
Federal Specification
Poles and Wires
2 Pole, 3-Wire Grounding
Mounting Screw Material
Steel-Zinc Plated
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Flammability
UL 94 V2.
Rating
15A, 125V
Other Available Colors
Brown, Ivory, White, Office White, Almond, Light Almond, Gray, Black
Base Material
Nylon
Horsepower
0.5
Certification
UL Listed, File E2186, Meets NEMA WD-6 requirements Listed to UL Standard 498, Certified to CSA, C22.2, No. 42
Dielectric Voltage
Withstands 2,000V minimum
Device Color
Brown
Mounting Strap Material
.040" (1) Steel (Galvanized)
Top Material
Nylon
Face Style
Smooth Face
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
Ground Screw Material
#8-32 Brass, Multiple Drive
Auto Ground Clip Material
Stainless Steel
Standard
NEMA
Current Interrupting
Certified for current interrupting at full rated current
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Terminal Screw Material
#8-32 Brass, Multiple Drive
Power Contacts Material
.030" (.8) Brass
Receptacle Grade
StyleLine Decorator Series, Specification Grade
Face Shape
Decorator

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Housing Color Brown, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Standards CSA Certified C22.2, Federal Specification W-C-596, NEMA WD-6, UL 498, Voltage Rating 125V AC
