  6. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

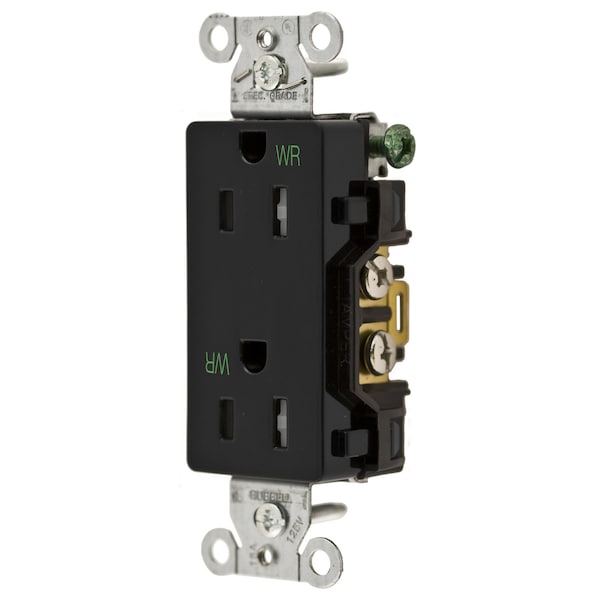

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded DR15BLKWRTR - main
Shop HUBBELL WIRING DEVICE-KELLEMS

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # DR15BLKWRTR

  • Zoro # G300702564

product price:  $16.29
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DR15BLKWRTR
Zoro #
G300702564
UPC #
783585144764
Country of Origin
China

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Brown
Mount Type
Flush
Standards
C22.2, CSA, No. 42, UL Listed
Resistance Properties
Tamper and Weather Resistant
Flange Type
Non-Flanged
Base Material
Nylon
Rating
15A, 125V
Face Style
Smooth Face
Ground Screw Material
#8-32 Brass, Multiple Drive
Power Contacts Material
.030" (.8) Brass
Certification
UL Listed, File E2186, Meets NEMA WD-6 requirements Listed to UL Standard 498, Certified to CSA, C22.2, No. 42
Mounting Strap Material
.040" (1) Steel (Galvanized)
Flammability
UL 94 V-2
Mounting Screw Material
Steel-Zinc Plated
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
Device Color
Black
Dielectric Voltage
Withstands 2,000V minimum
Product Type
Flush-receptacles
Standard
NEMA
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Face Shape
Decorator
Poles and Wires
2 Pole, 3-Wire Grounding
Horsepower
0.5
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Terminal Screw Material
#8-32 Brass, Multiple Drive
Receptacle Grade
StyleLine Decorator Series, Specification Grade, Tamper and Weather Resistant
Current Interrupting
Certified for current interrupting at full rated current
Top Material
Nylon
Other Available Colors
Brown, Ivory, White, Office White, Almond, Light Almond, Gray, Black
Auto Ground Clip Material
Stainless Steel
Terminal Identification
Terminals identified in accordance with UL 498 and CSA

Description

Hubbell Wiring Device Kellems, Straight Blade Devices,Receptacles,Weather and Tamper-Resistant Duplex,Decorator/Commercial/Industrial Grade, 2-Pole3-Wire Grounding, 15A 125V,5-15R, Black, Single Pack
