  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

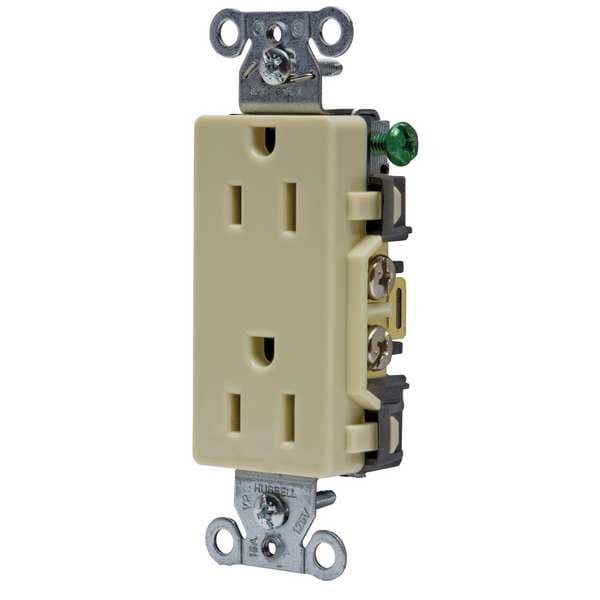

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded DR15I - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # DR15I

  • Zoro # G2503234

product price: $6.13
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DR15I
Zoro #
G2503234
UPC #
783585127804
Country of Origin
China

Dimensions

Mount Hole Center-to-Center Width
1.3 in
Face Plate Height
2.7 in
Overall Depth
3.3 in
Minimum Wire Size
14 AWG
Face Plate Width
1.3 in
Mount Hole Center-to-Center Height
2.7 in
Maximum Wire Size
10 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Ivory
Mount Type
Flush
Standards
CSA C22.2 No. 42, NEMA WD-6, UL 498, UL Federal Specification WC-596
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Corrosion Resistant
No
Sub-Category
Duplex Receptacles
HP
1/2 hp
NEMA Configuration
5-15
Mounting Type
Flush
Tamper Resistant
No
Voltage
125VAC
Weather Resistant
No
Power Indicator
No
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Surge Suppression
No
Outlet Type - Plugs and Receptacles
Decorator Duplex
Mounting Type - Plugs and Receptacles
Flush
Application Environment
Commercial
Number of Gangs
1
Weather Resistant - Plugs and Receptacles
No
Outlet Type
Decorator
Material
Nylon
Wiring Method - Plugs and Receptacles
Back and Side
Type
Duplex
Contact Material
Brass
Maximum Operating Temperature
167 Degrees F
UL 94 Flammability Rating
V-2
Connection Orientation
Straight
Cover Type
No Cover
Grade
Federal Specification
Horsepower Rating
1/2 hp
AFCI
No
NEMA Enclosure Rating
1
Polarized
Yes
Housing Material
Nylon
Market
Commercial, Industrial
Includes
Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover
Minimum Operating Temperature
-40 Degrees F
Surge Protection
No
For Location
Indoor
GFCI
No
Shrouded
No
Includes Mounting Hardware
Yes
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Face Shape
Decorator
Dielectric Voltage
Withstands 2,000V minimum
Flammability
UL 94 V2.
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Mounting Screw Material
Steel-Zinc Plated
Device Color
Ivory
Mounting Strap Material
.040" (1) Steel (Galvanized)
Base Material
Nylon
Horsepower
0.5
Poles and Wires
2 Pole, 3-Wire Grounding
Ground Screw Material
#8-32 Brass, Multiple Drive
Receptacle Grade
StyleLine Decorator Series, Specification Grade
Other Available Colors
Brown, Ivory, White, Office White, Almond, Light Almond, Gray, Black
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
Terminal Screw Material
#8-32 Brass, Multiple Drive
Current Interrupting
Certified for current interrupting at full rated current
Rating
15A, 125V
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Auto Ground Clip Material
Stainless Steel
Standard
NEMA
Top Material
Nylon
Face Style
Smooth Face
Power Contacts Material
.030" (.8) Brass
Certification
UL Listed, File E2186, Meets NEMA WD-6 requirements Listed to UL Standard 498, Certified to CSA, C22.2, No. 42

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Housing Color Ivory, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Standards CSA Certified C22.2, Federal Specification W-C-596, NEMA WD-6, UL 498, Voltage Rating 125V AC
