  6. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

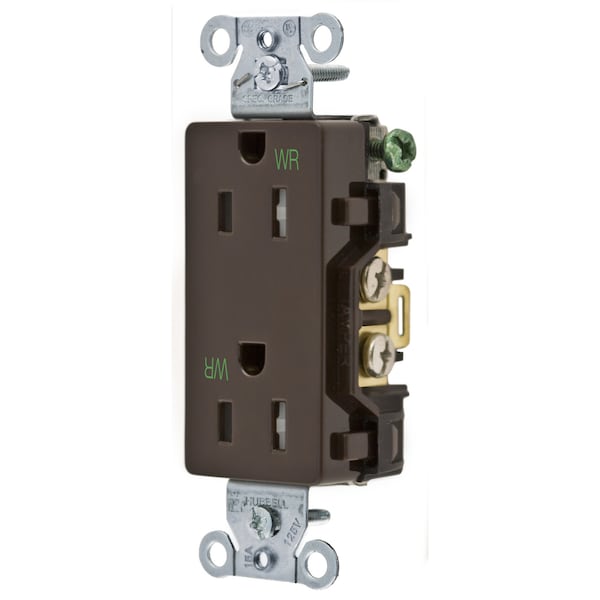

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded DR15WRTR - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # DR15WRTR

  • Zoro # G500701398

product price:  $15.75
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
DR15WRTR
Zoro #
G500701398
UPC #
783585144740
Country of Origin
China

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Brown
Mount Type
Flush
Standards
C22.2, CSA, No. 42, UL Listed
Resistance Properties
Tamper and Weather Resistant
Flange Type
Non-Flanged
Flammability
UL 94 V-2
Rating
15A, 125V
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
Face Shape
Decorator
Standard
NEMA
Mounting Strap Material
.040" (1) Steel (Galvanized)
Certification
UL Listed, File E2186, Meets NEMA WD-6 requirements Listed to UL Standard 498, Certified to CSA, C22.2, No. 42
Ground Screw Material
#8-32 Brass, Multiple Drive
Current Interrupting
Certified for current interrupting at full rated current
Receptacle Grade
StyleLine Decorator Series, Specification Grade, Tamper and Weather Resistant
Auto Ground Clip Material
Stainless Steel
Top Material
Nylon
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Mounting Screw Material
Steel-Zinc Plated
Terminal Screw Material
#8-32 Brass, Multiple Drive
Poles and Wires
2 Pole, 3-Wire Grounding
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Face Style
Smooth Face
Dielectric Voltage
Withstands 2,000V minimum
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Base Material
Nylon
Product Type
Flush-receptacles
Other Available Colors
Brown, Ivory, White, Office White, Almond, Light Almond, Gray, Black
Horsepower
0.5
Power Contacts Material
.030" (.8) Brass
Device Color
Brown

Description

Hubbell Wiring Device Kellems, Straight Blade Devices, Receptacles,Tamper and Weather-Resistant Duplex, Decorator/Commercial/IndustrialGrade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Brown, Single Pack
