  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

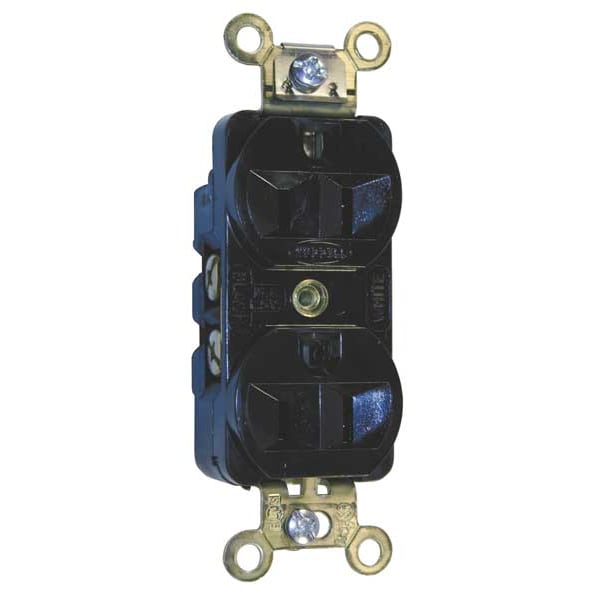

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded HBL5252BK - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # HBL5252BK

  • Zoro # G8523672

product price: $17.85
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL5252BK
Zoro #
G8523672
UPC #
783585434865
Country of Origin
United States

Dimensions

Dimensions
3.28 in x 1.33 in x 1.05 in
Display Size
Standard Sized Product
Length
3.28 in
Wire Size
#14 AWG to #10 AWG
Height
1.05 in
Width
1.33 in
Mount Hole Center-to-Center Height
3.3 in
Face Plate Height
2.7 in
Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG
Overall Depth
1.1 in
Face Plate Width
1.3 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Black
Mount Type
Flush
IP Rating
Not Rated
Standards
CSA Certified, NEMA WD-1, NEMA WD-6, UL Listed
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Number of Gangs
1
Sub-Category
Duplex Receptacles
HP
1/2 hp
Application Environment
Industrial
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Mounting Type - Plugs and Receptacles
Flush
Outlet Type
Duplex
Surge Suppression
No
Power Indicator
No
Voltage
125VAC
Mounting Type
Flush
Wiring Method - Plugs and Receptacles
Back and Side
Outlet Type - Plugs and Receptacles
Standard Duplex
Weather Resistant
No
Tamper Resistant
No
Color
Black
Material
Nylon
Weather Resistant - Plugs and Receptacles
No
Corrosion Resistant
No
NEMA Configuration
5-15
Mounting Hardware Material
Screw Mounting
Weight
0.25 lb
Carton Quantity
10
Maximum Horsepower
0.5
Connectivity
Back and Side Wired
Amperage
15 A
Dielectric Strength
Withstands 2,000V minimum
Nema Rating
5-15R
UPC
783585000000
Application
Extra Heavy Duty Compact
Environmental Rating
Indoor Dry Unless Protected By Additional Means
Brand
Hubbell Wiring Device-Kellems
Wattage
1875 W
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Number Of Wires
3-Wire
Type
Duplex
Minimum Operating Temperature
-40 Degrees F
AFCI
No
Surge Protection
No
Includes
Grounding Clip, Mounting Hardware, Wall Plate or Weatherproof Cover
Horsepower Rating
1/2 hp
UL 94 Flammability Rating
V-0
Cover Type
No Cover
For Location
Indoor
Includes Mounting Hardware
Yes
Polarized
Yes
Connection Orientation
Straight
Shrouded
No
Market
Industrial
NEMA Enclosure Rating
1
Housing Material
Nylon
GFCI
No
Maximum Operating Temperature
167 Degrees F
Grade
Federal Specification
Contact Material
Brass
Horsepower
0.5
Flammability
Top: UL 94 V2. Base: UL 94 V0 and UL 94-5 VA.
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Dielectric Voltage
Withstands 2,000V minimum.
Mounting Strap Material
.050" (1.3) Brass
Standard
NEMA
Face Shape
Traditional
Power Contacts Material
.037" (.9) Phosphor Bronze
Receptacle Grade
Compact Spec Grade
Receptacle Style
Duplex
Terminal Screw Material
#8-32 Brass /Ni plated for neutral
Base Material
Reinforced PET
Face Style
Finder Groove
Certification
-UL Listed to UL498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-1 Heavy Duty and WD-6 requirements, Certified to CSA, C22.2, No. 42 file 285.
Other Available Colors
Brown, Almond, Black, Gray, Ivory, Red, White
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only.
Mounting Screw Material
Steel-Zinc Plated
Operating Temperatures
Maximum continuous 75°C, minimum -40°C (w/o impact).
Poles and Wires
2 Pole, 3-Wire Grounding
Rating
15A, 125V
Auto Ground Clip Material
Stainless Steel
Terminal Identification
Terminals identified in accordance with UL498 (Brass, White, Green).
Ground Screw Material
#8-32 Brass, Multiple Drive (Green)
Top Material
Nylon
Current Interrupting
Certified for current interrupting at full rated current.
Material - Mounting Hardware
Screw Mounting
OEM Brand Name
Hubbell Wiring Device-Kellems
Horsepower - Maximum
0.5
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-0 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Industry Standard(s)
Certified to CSA 22.2, No. 42 File 285 Fed. Spec. W-C596G NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Environmental Conditions
Indoor Dry Unless Protected By Additional Means

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Housing Color Black, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Standards CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596G, NEMA WD-6, UL 498 File E2186, Voltage Rating 125V AC
