  6. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

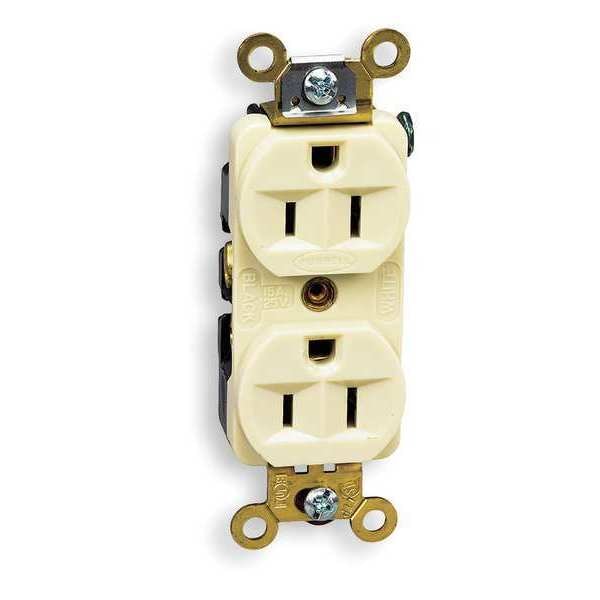

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded HBL5252I - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # HBL5252I

  • Zoro # G2550922

product price:  $17.65
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HBL5252I
Zoro #
G2550922
UPC #
783585434902
Country of Origin
United States

Dimensions

Wire Size
#14 AWG to #10 AWG
Dimensions
3.28 in x 1.33 in x 1.05 in
Length
3.28 in
Display Size
Standard Sized Product
Width
1.33 in
Height
1.05 in
Face Plate Height
2.7 in
Maximum Wire Size
10 AWG
Face Plate Width
1.3 in
Overall Depth
1.1 in
Minimum Wire Size
14 AWG
Mount Hole Center-to-Center Height
3.3 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Ivory
Mount Type
Flush
IP Rating
Not Rated
Standards
CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596G, NEMA WD-6, UL 498 File E2186
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Outlet Type
Duplex
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Mounting Type - Plugs and Receptacles
Flush
Weather Resistant - Plugs and Receptacles
No
NEMA Configuration
5-15
Number of Gangs
1
Application Environment
Industrial
Power Indicator
No
Wiring Method - Plugs and Receptacles
Back and Side
Sub-Category
Duplex Receptacles
Surge Suppression
No
Tamper Resistant
No
Outlet Type - Plugs and Receptacles
Standard Duplex
Mounting Type
Flush
Voltage
125VAC
HP
1/2 hp
Material
Nylon/Reinforced PET
Corrosion Resistant
No
Color
Ivoire
Weather Resistant
No
Series
Heavy Duty
Environmental Rating
Indoor Dry Unless Protected By Additional Means
Carton Quantity
10
UPC
783585000000
Amperage
15 A
Connectivity
Back and Side Wired
Weight
0.25 lb
Maximum Horsepower
0.5
Type
Standard Duplex
Nema Rating
5-15R
Mounting Hardware Material
Screw Mounting
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Dielectric Strength
Withstands 2,000V minimum
Number Of Wires
3-Wire
Wattage
1875 W
Style
Finder Groove Face
Brand
Hubbell Wiring Device-Kellems
Application
Extra Heavy Duty Compact
Includes
Grounding Clip, Mounting Hardware, Wall Plate or Weatherproof Cover
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
167 Degrees F
AFCI
No
Grade
Federal Specification
For Location
Indoor
Market
Industrial
Surge Protection
No
Connection Orientation
Straight
Horsepower Rating
1/2 hp
Contact Material
Brass
Shrouded
No
NEMA Enclosure Rating
1
UL 94 Flammability Rating
V-0
Housing Material
Nylon
GFCI
No
Polarized
Yes
Includes Mounting Hardware
Yes
Cover Type
No Cover
Mounting Strap Material
.050" (1.3) Brass
Horsepower
0.5
Ground Screw Material
#8-32 Brass, Multiple Drive (Green)
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
Power Contacts Material
.037" (.9) Phosphor Bronze
Face Style
Finder Groove
Terminal Screw Material
#8-32 Brass /Ni plated for neutral
Current Interrupting
Certified for current interrupting at full rated current
Receptacle Style
Duplex
Device Color
Ivory
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Other Available Colors
Brown, Almond, Black, Gray, Ivory, Red, White
Poles and Wires
2 Pole, 3-Wire Grounding
Auto Ground Clip Material
Stainless Steel
Mounting Screw Material
Steel-Zinc Plated
Dielectric Voltage
Withstands 2,000V minimum
Face Shape
Traditional
Certification
-UL Listed to UL498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-1 Heavy Duty and WD-6 requirements, Certified to CSA, C22.2, No. 42 file 285.
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Top Material
Nylon
Base Material
Reinforced PET
Flammability
UL 94 V-0, Top: UL 94 V2. Base: UL 94 V0 and UL 94-5 VA.
Standard
NEMA
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Rating
15A, 125V
Receptacle Grade
Compact Spec Grade

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Housing Color Ivory, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Standards CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596G, NEMA WD-6, UL 498 File E2186, Voltage Rating 125V AC
