  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

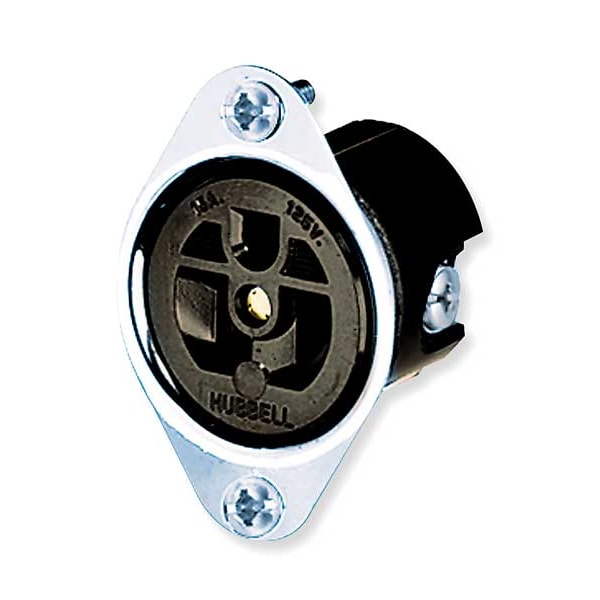

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded HBL5256 - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # HBL5256

  • Zoro # G1222532

product price: $31.55
/ea

Key Features

Receptacle Type
Single
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL5256
Zoro #
G1222532
UPC #
783585013046
Country of Origin
United States

Dimensions

Overall Depth
1.1 in
Minimum Wire Size
14 AWG
Flange Diameter
1.5 in
Maximum Wire Size
10 AWG
Mount Hole Center-to-Center Height
2.1 in
Flange Height
1.1 in
Display Size
Standard Sized Product
Wire Size
#14 AWG to #10 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Single
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Brown
Mount Type
Flush
Standards
CSA C22.2 No. 42, NEMA WD-6, UL 498
Resistance Properties
Tamper Resistant
Flange Type
Flanged
Number of Gangs
1
Material
Phenolic
Sub-Category
Flanged Receptacles
HP
1/2 hp
Outlet Type
Single
Weather Resistant - Plugs and Receptacles
No
Tamper Resistant
No
Voltage
125VAC
Power Indicator
No
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Surge Suppression
No
Outlet Type - Plugs and Receptacles
Single
Mounting Type - Plugs and Receptacles
Panel
Mounting Type
Panel
Application Environment
Industrial
Corrosion Resistant
No
Wiring Method - Plugs and Receptacles
Side
Weather Resistant
No
Type
Miniature
Includes
Mounting Hardware
Polarized
Yes
GFCI
No
Horsepower Rating
1/2 hp
NEMA Enclosure Rating
1
Flange Material
Stainless Steel
Connection Orientation
Straight
Minimum Operating Temperature
-40 Degrees F
Market
Commercial, Industrial
AFCI
No
UL 94 Flammability Rating
V-0
Contact Material
Brass
Surge Protection
No
Grade
Federal Specification
Maximum Operating Temperature
167 Degrees F
Includes Mounting Hardware
Yes
Cover Type
No Cover
Housing Material
Stainless Steel
For Location
Indoor
Shrouded
No
Power Contacts Material
.031" (.8) Phosphor Bronze
Rating
15A, 125V
Horsepower
0.5
Standard
NEMA
Terminal Identification
Terminals identified in accordance with UL498 (Brass, White, Green).
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only.
Base Material
Phenolic
Certification
UL Listed, File E2186, Meets NEMA WD-6 requirements Listed to UL Standard 498, Certified to CSA, C22.2, No. 42
Dielectric Voltage
Withstands 2,000V minimum.
Operating Temperatures
Maximum continuous 75°C, minimum -40°C (w/o impact).
Terminal Screw Material
#8-32 Brass, Multiple Drive
Ground Screw Material
#8-32 Brass, Multiple Drive (Green)
Face Style
Finder Groove
Flammability
UL 94 V2.
Poles and Wires
2 Pole, 3-Wire Grounding
Flange Style
Standard Metallic
Mounting Screw Material
Brass-Nickel Plated
Receptacle Grade
Heavy Duty Spec Grade
Current Interrupting
Certified for current interrupting at full rated current.
Top Material
Phenolic
OEM Brand Name
Hubbell Wiring Device-Kellems
Nema Rating
5-15R
Horsepower - Maximum
0.5
Industry Standard(s)
Certified to CSA, C22.2, No. 42 NEMA® WD-6 Compliant UL Listed, File E2186
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-0 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Cord Range
0.230"-0.720" (5.8-18.3)
Material - Mounting Hardware
Screw Mounting
Wattage
1875 W
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Dielectric Strength
Withstands 2,000V minimum
Application
Heavy Duty

Description

Flanged Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Housing Color Brown, Housing Material Stainless Steel, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Single, Standards CSA Certified C22.2 No. 42, NEMA WD-6, UL E2186, Voltage Rating 125V AC, Wire Connection Type Screw Terminals
