  6. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

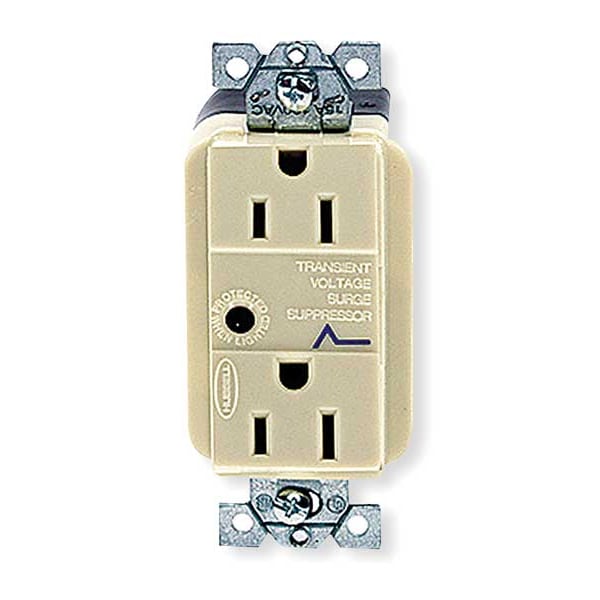

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded HBL5260ISA - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # HBL5260ISA

  • Zoro # G1160853

product price:  $70.15
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HBL5260ISA
Zoro #
G1160853
UPC #
783585060996
Country of Origin
China

Dimensions

Face Plate Width
1.3 in
Face Plate Height
2.6 in
Overall Depth
4 in
Mount Hole Center-to-Center Height
3.3 in
Display Size
Standard

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Grounding
Grounded
Housing Color
Ivory
Mount Type
Flush
Standards
CSA C22.2 No. 42, UL 498
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Corrosion Resistant
No
Voltage
125VAC
Outlet Type
Decorator
Sub-Category
Duplex Receptacles
NEMA Configuration
5-15
Power Indicator
Yes
Wiring Method
Side
HP
1/2 hp
Wiring Method - Plugs and Receptacles
Side
Number of Gangs
1
Weather Resistant
No
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Mounting Type
Flush
Weather Resistant - Plugs and Receptacles
No
Surge Suppression
Yes
Application Environment
Commercial
Material
Nylon
Tamper Resistant
No
Mounting Type - Plugs and Receptacles
Flush
Outlet Type - Plugs and Receptacles
Decorator Duplex
Type
Duplex
NEMA Enclosure Rating
1
GFCI
No
Includes
Grounding Clip
Polarized
Yes
Cover Type
No Cover
Shrouded
No
Housing Material
Nylon
Grade
Federal Specification
Minimum Operating Temperature
32 Degrees F
For Location
Indoor
UL 94 Flammability Rating
V-2
Horsepower Rating
1/2 hp
Visual Indicator Lights
Power Connected
AFCI
No
Surge Protection
Yes
Maximum Operating Temperature
140 Degrees F
Connection Orientation
Straight
Market
Commercial
Device Top
Nylon
Listed To
UL Standards 498 Receptacles, Meets UL1449 TVSS
Receptacle Grade
Standard
Grounding Screw
Steel (Green)
ANSI/IEEE
C62.41 (IEEE 587)
Mounting Strap
.050" (1.3) Steel-Zinc Coated
Contact Design
Tandem Modified Bypass
Device Base
Nylon
LED
Red
Terminal Screws
#8-32 Brass
Auto Ground Clip
Stainless Steel
Power Contact
.031" (.8) Brass
CSA Certified
To Specification C22.2 No. 42
Certifications
UL Listed File E2186
Poles and Wires
2 Pole, 3 Wire
Receptacle Style
Duplex
Mounting Screws
Steel, Zinc-Plated
Clamping Plate
.031" (.8) Brass
OEM Brand Name
Hubbell Wiring Device-Kellems
Indicator(s) Type
None
Series
Specification Grade
Application
Decorator Duplex
Operating Temperature
32 Deg F to 140 Deg F (0 Deg C to 60 Deg C)
Frequency Rating
60 Hz
Performance
Electrical - Protection Modes - Normal and Common Modes Electrical - Response Time - Approximately 5 ns Electrical - Transient Suppression - Peak Energy (10 X 100µs), Peak Current (8 X 20µs) Electrical - Voltage - 120V AC + 10% - 15% Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - 32°F to 140°F (0°C to 60°C)
Response Time
5
Nema Rating
5-15R
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Industry Standard(s)
CSA Certified to Specification C22.2 No. 42 Listed to UL Standards 498 UL Listed File E2186
Outlet
Straight Blade
Material - Mounting Hardware
Mounting Screws

Description

Hubbell offers a broad range SPD receptacles with technology that is unsurpassed. Inside Hubbell SPD receptacles are two 22mm square MOVs providing 240 joules of surge protection for each mode. The nylon component shield protects the printed circuit board from contaminants. An all-glass, conformally coated PC board provides superior moisture immunity for longer life in humid environments.
• Automatic self-grounding staple
• Distinctive surge symbol provides quick identification
• Power-on indicator light verifies that power is available
• Alert alarm sounds when surge protection is no longer functioning
