  6. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

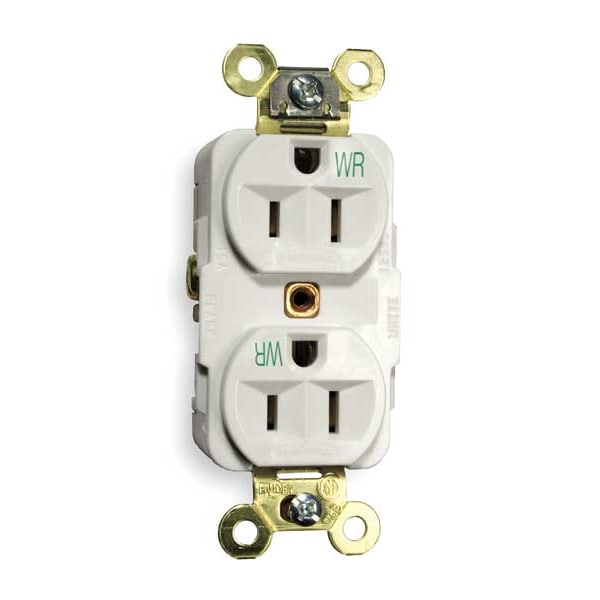

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded HBL5262WWR - main
Shop HUBBELL WIRING DEVICE-KELLEMS

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # HBL5262WWR

  • Zoro # G0771574

product price:  $29.95
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HBL5262WWR
Zoro #
G0771574
UPC #
783585320533
Country of Origin
United States

Dimensions

Wire Size
#14 AWG to #10 AWG
Length
3.28 in
Height
1.19 in
Display Size
Standard Sized Product
Width
1.65 in
Dimensions
3.28 in x 1.65 in x 1.19 in
Maximum Wire Size
10 AWG
Face Plate Width
1.7 in
Mount Hole Center-to-Center Height
3.3 in
Overall Depth
1.2 in
Minimum Wire Size
14 AWG
Face Plate Height
2.7 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
White
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI, CSA C22.2, RoHS Compliant, UL 498, cULus
Resistance Properties
Weather Resistant
Flange Type
Non-Flanged
Voltage
125VAC
Weather Resistant
Yes
Sub-Category
Duplex Receptacles
Application Environment
Harsh and Heavy Use Industrial
Mounting Type
Flush
Surge Suppression
No
Outlet Type
Duplex
Power Indicator
Yes
Outlet Type - Plugs and Receptacles
Standard Duplex
Color
White
Weather Resistant - Plugs and Receptacles
Yes
NEMA Configuration
5-15
Corrosion Resistant
No
Number of Gangs
1
Wiring Method - Plugs and Receptacles
Back and Side
Mounting Type - Plugs and Receptacles
Flush
Material
Nylon/Reinforced PET
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
HP
1/2 hp
Tamper Resistant
No
Nema Rating
5-15R
Series
Extra Heavy Duty
UPC
783585000000
Amperage
15 A
Connectivity
Back and Side Wired
Style
Finder Groove Face
Maximum Horsepower
0.5
Mounting Hardware Material
Screw Mounting
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Brand
Hubbell Wiring Device-Kellems
Type
Weather Resistant
Number Of Wires
3-Wire
Wattage
1875 W
Environmental Rating
Weather Resistant
Dielectric Strength
Withstands 2,000V minimum
Carton Quantity
10
Weight
0.25 lb
Application
Extra Heavy Duty Specification Grade
Housing Material
Nylon, Reinforced PET
UL 94 Flammability Rating
V-0, V-2
Surge Protection
No
Includes Mounting Hardware
Yes
Market
Industrial
Includes
Grounding Clip, Mounting Hardware, Wall Plate or Weatherproof Cover
Polarized
Yes
Contact Material
Nickel-Plated Brass
Minimum Operating Temperature
-40 Degrees F
Connection Orientation
Straight
NEMA Enclosure Rating
1
GFCI
No
Grade
Federal Specification
AFCI
No
Cover Type
No Cover
Maximum Operating Temperature
167 Degrees F
Shrouded
No
Visual Indicator Lights
Power Connected
Horsepower Rating
1/2 hp
Horsepower
0.5
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Receptacle Grade
Extra Heavy Duty, Weather Resistant
Receptacle Style
Duplex
Top Material
Nylon
Dielectric Voltage
Withstands 2,000V minimum
Ground Screw Material
#10-32 Silicon Bronze (Green)
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Base Material
Reinforced PET
Auto Ground Clip Material
Stainless Steel
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Power Contacts Material
.037" (.9) Brass
Mounting Screw Material
Steel-Zinc Plated
Standard
NEMA
Face Style
Finder Groove
Terminal Screw Material
#10-32 Silicon Bronze (Ni plate if neutral)
Other Available Colors
Brown, Black, Gray, Ivory, Red, White
Face Shape
Traditional
Certification
-UL Listed to UL498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-1 Heavy Duty and WD-6 requirements, Certified to CSA, C22.2, No. 42 file 285.
Current Interrupting
Certified for current interrupting at full rated current
Rating
15A, 125V
Poles and Wires
2 Pole, 3-Wire Grounding
Device Color
White
Mounting Strap Material
.050" (1.3) Brass
Flammability
UL 94 V2 or better, Top: UL 94V-2, Base: UL 94V-0
Material - Mounting Hardware
Screw Mounting
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - Top: UL 94V-2, Base: UL 94V-0 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Horsepower - Maximum
0.5
Environmental Conditions
Weather Resistant
OEM Brand Name
Hubbell Wiring Device-Kellems
Industry Standard(s)
Certified to CSA 22.2, No. 42 File 285 Fed. Spec. WC596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186

Description

HBL® Extra Heavy Duty Max Industrial Series - Hubbell’s commitment to quality continually reinforces a philosophy of unrivaled performance. No Hubbell device exemplifies this philosophy more than the HBL5262. While all Hubbell receptacles are designed and manufactured to withstand even the harshest environments, none match the total performance of the HBL5262. Whether in a factory, office building or school, the Hubbell HBL5262 is the receptacle of choice when people are depending on the safety and reliability of a receptacle. The safest, most reliable design for a low resistance flow of fault currents. Oversized “bell" shaped ground contacts, along with nickel plated steel retaining shields, help minimize damage to the grounding system during abrupt pullout.
• Weather-resistance complies with national electrical code requirements
• Finder Groove Face
• One-piece brass integral ground strap
• Deep body design with circuit ID face
