  6. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

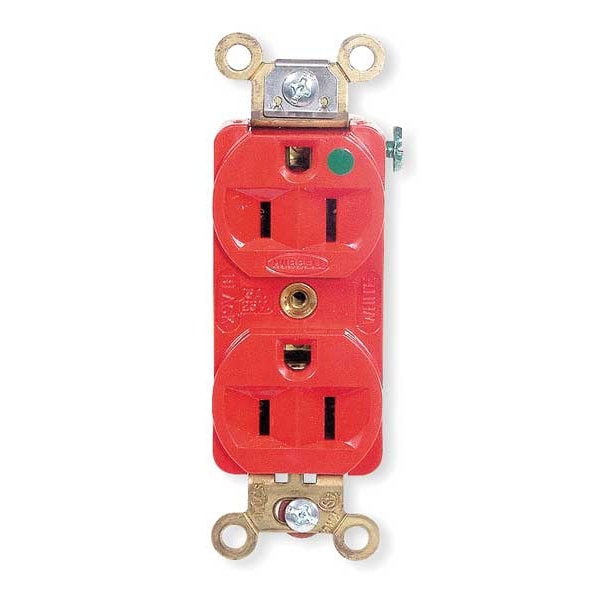

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded HBL8200HRED - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # HBL8200HRED

  • Zoro # G2734751

product price:  $28.55
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL8200HRED
Zoro #
G2734751
UPC #
783585247502
Country of Origin
United States

Dimensions

Display Size
Standard Sized Product
Wire Size
#14 AWG to #10 AWG
Dimensions
3.28 in x 1.33 in x 1.05 in
Overall Depth
1.1 in
Face Plate Height
2.7 in
Minimum Wire Size
14 AWG
Mount Hole Center-to-Center Height
3.3 in
Maximum Wire Size
10 AWG
Face Plate Width
1.3 in
Length
3.28 in
Width
1.33 in
Height
1.05 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Red
Mount Type
Flush
IP Rating
IP20
Standards
CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186
Resistance Properties
Impact Resistant
Flange Type
Non-Flanged
Material
Nylon
Weather Resistant
No
Sub-Category
Duplex Receptacles
Outlet Type - Plugs and Receptacles
Standard Duplex
Voltage
125VAC
Corrosion Resistant
No
Tamper Resistant
No
Power Indicator
No
Surge Suppression
No
Number of Gangs
1
Outlet Type
Duplex
NEMA Configuration
5-15
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Mounting Type - Plugs and Receptacles
Flush
Application Environment
Heavy Use Hospital Grade
Wiring Method - Plugs and Receptacles
Back and Side
HP
1/2 hp
Color
Rouge
Weather Resistant - Plugs and Receptacles
No
Mounting Type
Flush
Amperage
15 A
Environmental Rating
Indoor Dry Unless Protected By Additional Means
Number Of Wires
3-Wire
Application
Hospital Grade
Carton Quantity
10
Series
Hospital Grade
Type
Receptacle
Nema Rating
5-15R
Mounting Hardware Material
Screw Mounting
Connectivity
Back and Side Wired Screw Terminals
Wattage
1875 W
Dielectric Strength
Withstands 2,000V minimum
Brand
Hubbell Wiring Device-Kellems
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Style
thermoplastic polyester face
Maximum Horsepower
0.5
Maximum Operating Temperature
167 Degrees F
UL 94 Flammability Rating
V-0
GFCI
No
Contact Material
Brass
Minimum Operating Temperature
-40 Degrees F
Surge Protection
No
Connection Orientation
Straight
Horsepower Rating
1/2 hp
Cover Type
No Cover
Includes
Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover
For Location
Indoor
Shrouded
No
Includes Mounting Hardware
Yes
AFCI
No
Polarized
Yes
Market
Commercial
NEMA Enclosure Rating
1
Housing Material
Nylon
Grade
Hospital Grade Fed. Spec.
Mounting Screws
Zinc plated steel
Ground Contacts
.031 in. (.8) Brass
Clamping Plate
Nickel plated steel
Face
Nylon
Flammability
UL 94 V-0
Dielectric Voltage
Withstands 2,000V minimum
Terminal Screws
Brass
Device Color
Red
Automatic Self-grounding Staple
Stainless steel
Base
PBT
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
Current Interrupting
Certified for current interrupting at full rated current
Mounting Strap
.050 in. (1.3) Galvanized steel
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Contacts
0.031" (0.8) Brass
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Material - Mounting Hardware
Screw Mounting
Horsepower - Maximum
0.5
OEM Brand Name
Hubbell Wiring Device-Kellems
Industry Standard(s)
CSA Certified, C22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-0 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #14-#10 AWG stranded or solid copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA

Description

HBL® Extra Heavy Duty Max Hospital Grade Devices - UL requirements for Hospital Grade devices is more stringent than those for standard devices. Hubbell receptacles are designed to meet and exceed the standards with Exclusive nickel-plated bypass contact design increases contact pressure, lowering the operating temperature; Four point grounding system provides redundant grounding for low resistance ground continuity in high abuse areas; Impact resistant deep face design prevents breakage. Because of these features and others, the benefit is performance, reliability and value for any health care facility.
• Slender/compact design
• Impact-resistant finder groove face
• Triple wipe contacts
