  6. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

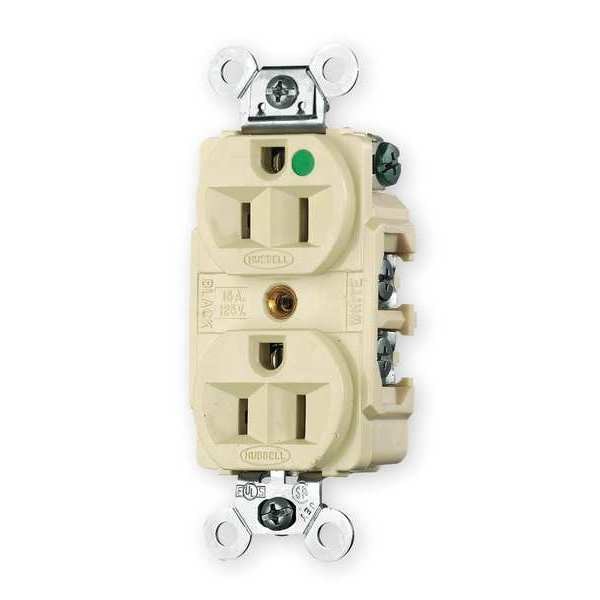

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded HBL8200I - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # HBL8200I

  • Zoro # G0463942

product price:  $35.79
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL8200I
Zoro #
G0463942
UPC #
783585435626
Country of Origin
United States

Dimensions

Dimensions
3.28 in x 1.65 in x 1.19 in
Display Size
Standard Sized Product
Wire Size
#14 AWG to #10 AWG
Mount Hole Center-to-Center Height
3.3 in
Face Plate Width
1.6 in
Face Plate Height
2.7 in
Minimum Wire Size
14 AWG
Overall Depth
1.2 in
Maximum Wire Size
10 AWG
Length
3.28 in
Height
1.19 in
Width
1.65 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Ivory
Mount Type
Flush
IP Rating
IP20
Standards
C22.2 No. 42 File 285, CSA Certified, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186
Resistance Properties
Impact Resistant
Flange Type
Non-Flanged
Material
Thermoplastic
Mounting Type - Plugs and Receptacles
Flush
Wiring Method - Plugs and Receptacles
Back and Side
Mounting Type
Flush
Application Environment
Heavy Use Hospital Grade
Weather Resistant - Plugs and Receptacles
No
Power Indicator
No
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Outlet Type
Duplex
Outlet Type - Plugs and Receptacles
Standard Duplex
Color
Ivoire
HP
1/2 hp
Corrosion Resistant
No
NEMA Configuration
5-15
Weather Resistant
No
Voltage
125VAC
Surge Suppression
No
Number of Gangs
1
Tamper Resistant
No
Sub-Category
Duplex Receptacles
Amperage
15 A
Mounting Hardware Material
Screw Mounting
Number Of Wires
3-Wire
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Connectivity
Back and Side Wired Screw Terminals
Carton Quantity
10
Dielectric Strength
Withstands 2,000V minimum
Type
Receptacle
Maximum Horsepower
0.5
Application
Extra Heavy Duty Hospital Grade
Style
Finder Groove Face
Wattage
1875 W
Series
Hospital Grade
Brand
Hubbell Wiring Device-Kellems
Nema Rating
5-15R
Environmental Rating
Indoor Dry Unless Protected By Additional Means
For Location
Indoor
Housing Material
Thermoplastic
NEMA Enclosure Rating
1
Cover Type
No Cover
Contact Material
Nickel-Plated Brass
Connection Orientation
Straight
Polarized
Yes
GFCI
No
Includes
Grounding Clip, Mounting Hardware, Wall Plate or Weatherproof Cover
UL 94 Flammability Rating
V-0
Shrouded
No
Surge Protection
No
Horsepower Rating
1/2 hp
Includes Mounting Hardware
Yes
Grade
Hospital Grade Fed. Spec.
Maximum Operating Temperature
167 Degrees F
AFCI
No
Minimum Operating Temperature
-40 Degrees F
Device Color
Ivory
Flammability
UL 94 V-0
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Poles and Wires
2 Pole, 3 Wire
Device Grade
Heavy Duty Spec Grade
Current Interrupting
Certified for current interrupting at full rated current
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Dielectric Voltage
Withstands 2,000V minimum
Material - Mounting Hardware
Screw Mounting
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Horsepower - Maximum
0.5
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-0 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #14-#10 AWG stranded or solid copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Industry Standard(s)
CSA Certified, C22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
OEM Brand Name
Hubbell Wiring Device-Kellems

Description

HBL® Extra Heavy Duty Max Hospital Grade Devices - UL requirements for Hospital Grade devices is more stringent than those for standard devices. Hubbell receptacles are designed to meet and exceed the standards with Exclusive nickel-plated bypass contact design increases contact pressure, lowering the operating temperature; Four point grounding system provides redundant grounding for low resistance ground continuity in high abuse areas; Impact resistant deep face design prevents breakage. Because of these features and others, the benefit is performance, reliability and value for any health care facility.
• Deep body design with circuit ID face
• Patented ground contact provides redundant grounding
• Unique bypass contact design
