  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

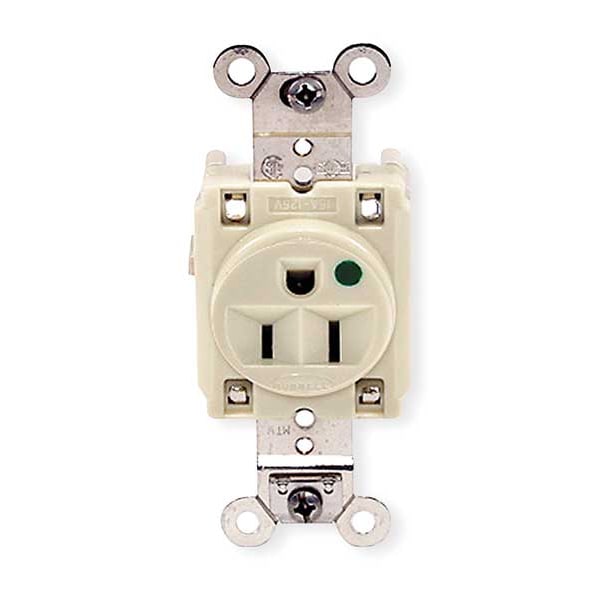

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded HBL8210I - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # HBL8210I

  • Zoro # G1257663

product price: $30.19
/ea

Key Features

Receptacle Type
Single
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL8210I
Zoro #
G1257663
UPC #
783585016238
Country of Origin
United States

Dimensions

Width
1.63 in
Height
1.19 in
Face Plate Height
1.9 in
Overall Depth
1.2 in
Face Plate Width
1.6 in
Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG
Mount Hole Center-to-Center Height
3.3 in
Wire Size
#14 AWG to #10 AWG
Length
3.28 in
Display Size
Standard Sized Product
Dimensions
3.28 in x 1.63 in x 1.19 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Single
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Ivory
Mount Type
Flush
IP Rating
IP20
Standards
CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186
Resistance Properties
Impact Resistant
Flange Type
Non-Flanged
Mounting Type - Plugs and Receptacles
Flush
Material
Nylon/Reinforced Thermoplastic Polyester
Outlet Type
Single
Mounting Type
Flush
Weather Resistant
No
Voltage
125VAC
Tamper Resistant
No
Weather Resistant - Plugs and Receptacles
No
Application Environment
Heavy Use Hospital Grade
HP
1/2 hp
Number of Gangs
1
Corrosion Resistant
No
Surge Suppression
No
Outlet Type - Plugs and Receptacles
Single
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Sub-Category
Single Receptacles
Wiring Method - Plugs and Receptacles
Back and Side
Type
Single
Cover Type
No Cover
NEMA Enclosure Rating
1
Surge Protection
No
Polarized
Yes
GFCI
No
Minimum Operating Temperature
-40 Degrees F
UL 94 Flammability Rating
5VA, V-0, V-2
Maximum Operating Temperature
167 Degrees F
For Location
Indoor
Horsepower Rating
1/2 hp
Connection Orientation
Straight
Shrouded
No
Includes
Grounding Clip, Mounting Hardware, Wall Plate or Weatherproof Cover
AFCI
No
Housing Material
Nylon
Includes Mounting Hardware
Yes
Contact Material
Brass
Grade
Hospital Grade Fed. Spec.
Poles and Wires
2 Pole, 3 Wire
Device Color
Ivory
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Current Interrupting
Certified for current interrupting at full rated current
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
Dielectric Voltage
Withstands 2,000V minimum
Flammability
Top: UL 94V-2, Base: UL 94V-0 and UL 94-5 VA
Wattage
1875 W
Industry Standard(s)
Certified to CSA, C22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Style
Finder Groove Face
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Horsepower - Maximum
0.5
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - Top: UL 94V-2, Base: UL 94V-0 and UL 94-5 VA Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Dielectric Strength
Withstands 2,000V minimum
Application
Extra Heavy Duty Hospital Grade
Nema Rating
5-15R
Material - Mounting Hardware
Screw Mounting
OEM Brand Name
Hubbell Wiring Device-Kellems
Series
Hospital Grade

Description

HBL® Extra Heavy Duty Max Hospital Grade Devices - UL requirements for Hospital Grade devices is more stringent than those for standard devices. Hubbell receptacles are designed to meet and exceed the standards with Exclusive nickel-plated bypass contact design increases contact pressure, lowering the operating temperature; Four point grounding system provides redundant grounding for low resistance ground continuity in high abuse areas; Impact resistant deep face design prevents breakage. Because of these features and others, the benefit is performance, reliability and value for any health care facility.
• One-piece nickel-plated brass integral ground strap
• Patented bypass contact design
