Shop HUBBELL WIRING DEVICE-KELLEMS

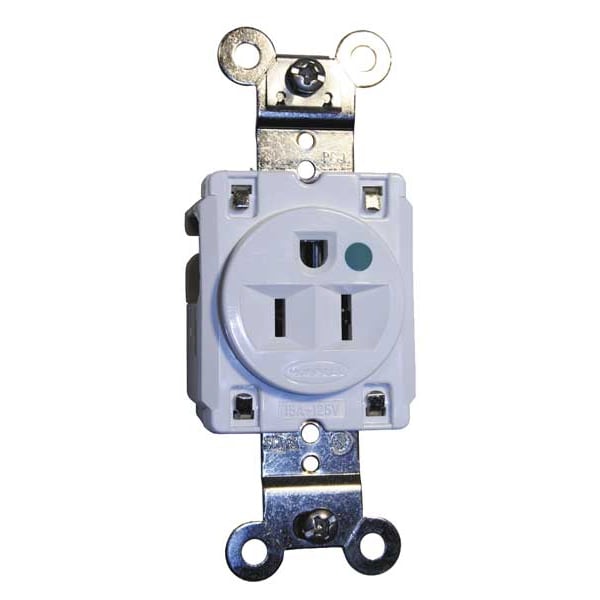

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # HBL8210W

  • Zoro # G1975154

product price:
$
30.19
/ea

Key Features

Receptacle Type
Single
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
HBL8210W
Zoro #
G1975154
UPC #
783585016252
Country of Origin
United States
Item
Straight Blade Receptacle
Receptacle Type
Single
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
White
Mount Type
Flush
IP Rating
IP20
Standards
CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186
Resistance Properties
Impact Resistant
Flange Type
Non-Flanged
Weather Resistant - Plugs and Receptacles
No
Corrosion Resistant
No
Surge Suppression
No
Tamper Resistant
No
Voltage
125VAC
Mounting Type - Plugs and Receptacles
Flush
NEMA Configuration
5-15
Outlet Type
Single
Number of Gangs
1
Power Indicator
No
Material
Impact Modified PBT/Reinforced PET
Mounting Type
Flush
Application Environment
Heavy Use Hospital Grade
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Sub-Category
Single Receptacles
Outlet Type - Plugs and Receptacles
Single
HP
1/2 hp
Wiring Method - Plugs and Receptacles
Back and Side
Weather Resistant
No
Type
Single
Includes Mounting Hardware
Yes
For Location
Indoor
GFCI
No
NEMA Enclosure Rating
1
Connection Orientation
Straight
Grade
Hospital Grade Fed. Spec.
Contact Material
Brass
UL 94 Flammability Rating
5VA, V-0, V-2
Maximum Operating Temperature
167 Degrees F
Polarized
Yes
Horsepower Rating
1/2 hp
Cover Type
No Cover
Housing Material
Nylon
Minimum Operating Temperature
-40 Degrees F
Shrouded
No
Includes
Grounding Clip, Mounting Hardware, Wall Plate or Weatherproof Cover
Surge Protection
No
AFCI
No
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Flammability
Top: UL 94V-2, Base: UL 94V-0 and UL 94-5 VA
Series
Hospital Grade
Horsepower - Maximum
0.5
Current Interrupting
Certified for current interrupting at full rated current
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
OEM Brand Name
Hubbell Wiring Device-Kellems
Style
Finder Groove Face
Material - Mounting Hardware
Screw Mounting
Device Color
White
Poles and Wires
2 Pole, 3 Wire
Wattage
1875 W
Dielectric Voltage
Withstands 2,000V minimum
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Nema Rating
5-15R
Application
Extra Heavy Duty Hospital Grade
Dielectric Strength
Withstands 2,000V minimum
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)

Description

HBL® Extra Heavy Duty Max Hospital Grade Devices - UL requirements for Hospital Grade devices is more stringent than those for standard devices. Hubbell receptacles are designed to meet and exceed the standards with Exclusive nickel-plated bypass contact design increases contact pressure, lowering the operating temperature; Four point grounding system provides redundant grounding for low resistance ground continuity in high abuse areas; Impact resistant deep face design prevents breakage. Because of these features and others, the benefit is performance, reliability and value for any health care facility.
• One-piece nickel-plated brass integral ground strap
• Patented bypass contact design
