  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

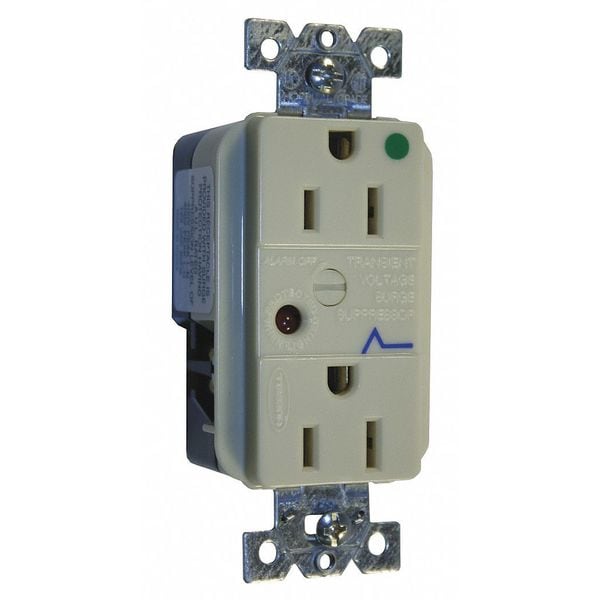

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded HBL8262ISA - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # HBL8262ISA

  • Zoro # G6574057

product price: $106.99
/ea
Free Shipping & Returns

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HBL8262ISA
Zoro #
G6574057
UPC #
783585060378
Country of Origin
China

Dimensions

Overall Depth
4 in
Face Plate Height
2.6 in
Mount Hole Center-to-Center Height
3.3 in
Face Plate Width
1.3 in
Display Size
Standard

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Grounding
Grounded
Housing Color
Ivory
Mount Type
Flush
Standards
CSA Certified C22.2 No. 42, UL 498, UL E2186
Resistance Properties
Impact Resistant
Flange Type
Non-Flanged
NEMA Configuration
5-15
Tamper Resistant
No
Corrosion Resistant
No
Weather Resistant - Plugs and Receptacles
No
Weather Resistant
No
Surge Suppression
Yes
Outlet Type
Decorator
HP
1/2 hp
Application Environment
Hospital Grade
Wiring Method - Plugs and Receptacles
Side
Outlet Type - Plugs and Receptacles
Decorator Duplex
Material
Nylon
Voltage
125VAC
Sub-Category
Duplex Receptacles
Power Indicator
Yes
Mounting Type - Plugs and Receptacles
Flush
Number of Gangs
1
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Special Features
Audible Alarm
Wiring Method
Side
Mounting Type
Flush
Visual Indicator Lights
Power Connected
Minimum Operating Temperature
32 Degrees F
Housing Material
Nylon
NEMA Enclosure Rating
1
Connection Orientation
Straight
Polarized
Yes
Surge Protection
Yes
Horsepower Rating
1/2 hp
Shrouded
No
UL 94 Flammability Rating
V-2
GFCI
No
Cover Type
No Cover
Includes
Grounding Clip
Grade
Hospital Grade Fed. Spec.
AFCI
No
Maximum Operating Temperature
140 Degrees F
For Location
Indoor
Poles and Wires
2 Pole, 3 Wire
Device Grade
Heavy Duty Spec Grade
Outlet
Straight Blade
Series
Hospital Grade
Performance
Electrical - Frequency - 60Hz Electrical - Protection Modes - Normal and Common Modes Electrical - Response Time - Approximately 5 ns Electrical - Transient Suppression - Peak Energy (10 X 100µs) Peak Current (8 X 20µs) Electrical - Voltage - 120V AC + 10% - 15% Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - 32°F to 140°F (0°C to 60°C)
Frequency Rating
60 Hz
Nema Rating
5-15R
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
OEM Brand Name
Hubbell Wiring Device-Kellems
Response Time
5
Application
Decorator Duplex with Light and Alarm
Indicator(s) Type
LED and Audible Alarm
Operating Temperature
32 Deg F to 140 Deg F (0 Deg C to 60 Deg C)
Material - Mounting Hardware
Mounting Screws
Industry Standard(s)
CSA Certified to Specification C22.2 No. 42 Listed to UL Standards 498 Receptacles UL Listed File E2186

Description

• High-impact nylon face resists breakage
• Automatic grounding clip attached to bridge
• Power-on indicator light verifies instantly that power is available
• Distinctive surge symbol for visual identification of surge suppression receptacle
