  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

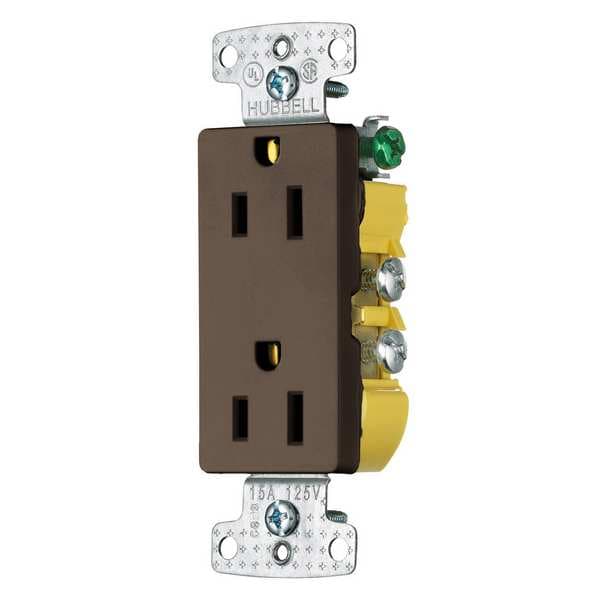

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded RRD15 - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # RRD15

  • Zoro # G2162176

product price: $7.76
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RRD15
Zoro #
G2162176
UPC #
883778100093
Country of Origin
China

Dimensions

Mount Hole Center-to-Center Height
3.3 in
Minimum Wire Size
14 AWG
Face Plate Width
1.5 in
Overall Depth
4.2 in
Face Plate Height
2.6 in
Maximum Wire Size
12 AWG
Wire Size
#14 AWG to #12 AWG
Display Size
Standard Sized Product

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Brown
Mount Type
Flush
Standards
CSA Certified, UL Listed
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Weather Resistant - Plugs and Receptacles
No
HP
1/2 hp
Wiring Method - Plugs and Receptacles
Push and Side
Application Environment
General Purpose
Material
Nylon
Power Indicator
No
Weather Resistant
No
Outlet Type
Decorator
Mounting Type
Flush
Mounting Type - Plugs and Receptacles
Flush
Sub-Category
Duplex Receptacles
Corrosion Resistant
No
Outlet Type - Plugs and Receptacles
Decorator Duplex
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Tamper Resistant
Yes
Voltage
125VAC
Surge Suppression
No
Number of Gangs
1
Type
Duplex
Connection Orientation
Straight
Horsepower Rating
1/2 hp
Housing Material
Thermoplastic
Shrouded
No
GFCI
No
Cover Type
No Cover
Surge Protection
No
Market
Residential
For Location
Indoor
Includes
Mounting Hardware
Contact Material
Brass
Polarized
Yes
Grade
General Use
Includes Mounting Hardware
Yes
NEMA Enclosure Rating
1
AFCI
No
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Nema Rating
5-15R
Application
Residential Receptacles
Material - Mounting Hardware
Screw Mounting
Wattage
1875

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Housing Color Brown, Housing Material Thermoplastic, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Standards CSA Certified, UL Listed, Voltage Rating 125V AC, Wire Connection Type Push In, Wiring Method Back/Side, AFCI No
