  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

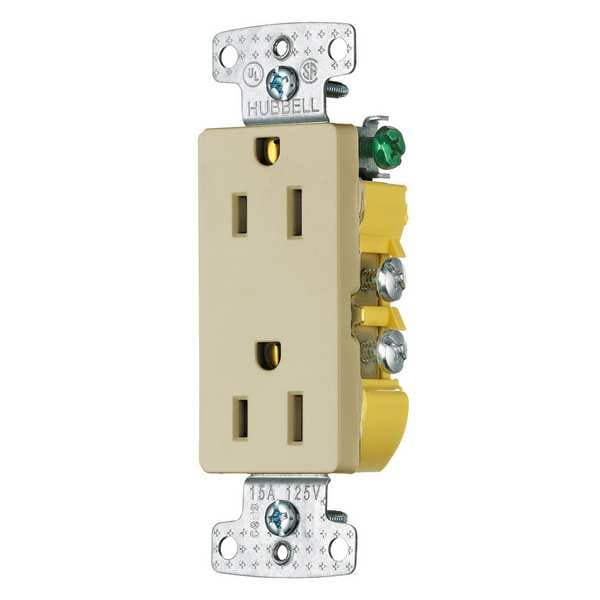

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded RRD15I - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # RRD15I

  • Zoro # G3120345

product price: $7.76
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RRD15I
Zoro #
G3120345
UPC #
883778100109
Country of Origin
China

Dimensions

Face Plate Width
1.5 in
Mount Hole Center-to-Center Height
3.3 in
Overall Depth
4.2 in
Minimum Wire Size
14 AWG
Face Plate Height
2.6 in
Maximum Wire Size
12 AWG
Display Size
Standard Sized Product
Wire Size
#14 AWG to #12 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Ivory
Mount Type
Flush
Standards
CSA Certified, UL Listed
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Weather Resistant - Plugs and Receptacles
No
Sub-Category
Duplex Receptacles
Number of Gangs
1
Tamper Resistant
No
Corrosion Resistant
No
Outlet Type - Plugs and Receptacles
Decorator Duplex
Surge Suppression
No
Voltage
125VAC
HP
1/2 hp
Power Indicator
No
Application Environment
General Purpose
Outlet Type
Decorator
Weather Resistant
No
Mounting Type - Plugs and Receptacles
Flush
Mounting Type
Flush
Wiring Method - Plugs and Receptacles
Push and Side
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Material
Thermoplastic
Type
Duplex
For Location
Indoor
Includes
Mounting Hardware
Market
Residential
Shrouded
No
Polarized
Yes
Connection Orientation
Straight
NEMA Enclosure Rating
1
GFCI
No
Grade
General Use
Surge Protection
No
Includes Mounting Hardware
Yes
Horsepower Rating
1/2 hp
Contact Material
Brass
AFCI
No
Cover Type
No Cover
Housing Material
Thermoplastic
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Material - Mounting Hardware
Screw Mounting
Nema Rating
5-15R
Application
Residential Receptacles
Wattage
1875

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Housing Color Ivory, Housing Material Thermoplastic, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Standards CSA Certified, UL Listed, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Method Back/Side, AFCI No
