  6. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

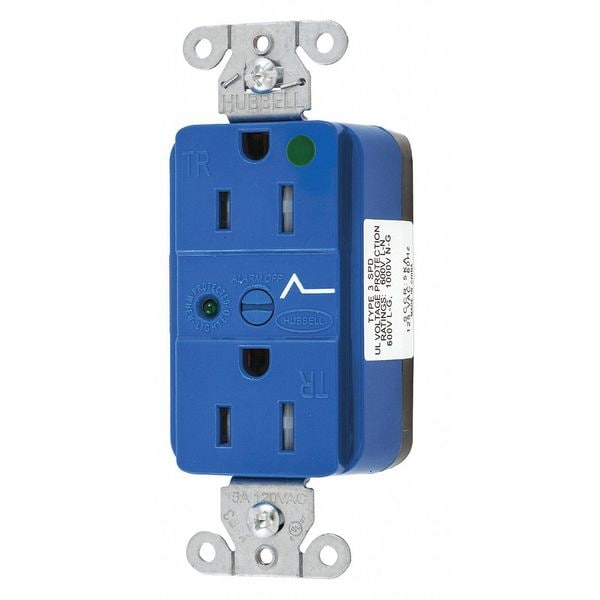

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded SNAP8262S - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # SNAP8262S

  • Zoro # G4571817

product price:  $107.99
/ea
Free Shipping & Returns

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SNAP8262S
Zoro #
G4571817
UPC #
00783585252117
Country of Origin
China

Dimensions

Width
1.77 in
Height
1.1 in
Face Plate Width
1.8 in
Mount Hole Center-to-Center Height
3.3 in
Overall Depth
1.5 in
Face Plate Height
2.6 in
Maximum Wire Size
12 AWG
Wire Size
#12 AWG
Display Size
Standard Sized Product
Length
3.28 in
Dimensions
3.28 in x 1.77 in x 1.1 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back
Grounding
Grounded
Housing Color
Blue
Mount Type
Flush
IP Rating
IP20
Standards
CSA Certified to Specification C22.2 No. 42, Listed to UL Standards 498 Receptacles, UL Listed File E2186
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Surge Suppression
Yes
Voltage
125VAC
Special Features
Standard
Mounting Type
Flush
Sub-Category
Duplex Receptacles
Corrosion Resistant
No
Power Indicator
No
Material
Nylon
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Application Environment
Commercial
NEMA Configuration
5-15
HP
1/2 hp
Weather Resistant
No
Outlet Type
Duplex
Outlet Type - Plugs and Receptacles
Standard Duplex
Weather Resistant - Plugs and Receptacles
No
Number of Gangs
1
Wiring Method - Plugs and Receptacles
Modular
Tamper Resistant
No
Mounting Type - Plugs and Receptacles
Flush
NEMA Rating
1
UL 94 Flammability Rating
V-2
Market
Commercial
Connection Orientation
Straight
Surge Protection
Yes
Contact Material
Brass
Shrouded
No
AFCI
No
Maximum Operating Temperature
167 Degrees F
For Location
Indoor
Grade
Hospital Grade Fed. Spec.
Minimum Operating Temperature
-40 Degrees F
Housing Material
Nylon
Hub Type
Feed Through
NEMA Enclosure Rating
1
GFCI
No
Cover Type
No Cover
Horsepower Rating
1/2 hp
Polarized
Yes
Includes
Wall Plate or Weatherproof Cover
Wattage
1875 W
Application
Hospital Grade
Style
Smooth Face
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Number Of Conductors
3-Wire Grounding
Dielectric Strength
Withstands 2,000V minimum
Series
Hospital Grade
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Material - Mounting Hardware
Screw Mounting
Horsepower - Maximum
0.5
Industry Standard(s)
CSA Certified to Specification C22.2 No. 42 Listed to UL Standards 498 Receptacles UL Listed File E2186
Performance
Electrical: Current Interrupting- Certified for current interrupting at full rated current Electrical: Dielectric Voltage- Withstands 2,000V minimum Mechanical: Product Identification Ratings are a permanent part of the device Environmental: Flammability- UL 94V-2 Environmental: Operating Temperature- Maximum continuous 75°C minimum -40°C (w/o impact)
OEM Brand Name
Hubbell Wiring Device-Kellems

Description

SNAPConnect® Devices offer superior installation efficiency for new construction and renovations, while delivering safe, reliable connections. Instead of conventional wiring methods, SNAPConnect’s modular connector is installed during rough-in in lieu of pigtails. Once the walls are up, the protective covering is removed, and the terminal is simply snapped into the SNAPConnect device for a consistent connection every time. Once installed, SNAPConnect’s modular design enables simple device change-out by maintenance personnel.
• Audible SNAP, indicates solid connection
• Reduces installation time
• Surge supression, Tamper-Resistant, LED Indicator
