  6. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Isolated Ground

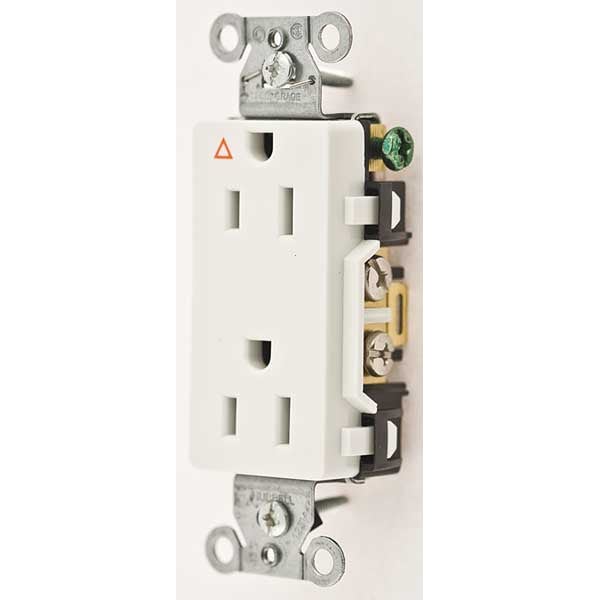

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Isolated Ground IG15DRW - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Isolated Ground

  • Mfr # IG15DRW

  • Zoro # G2577014

product price:  $9.79
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
IG15DRW
Zoro #
G2577014
UPC #
783585146867
Country of Origin
China

Dimensions

Face Plate Width
1.6 in
Overall Depth
1.1 in
Face Plate Height
2.7 in
Maximum Wire Size
12 AWG
Minimum Wire Size
14 AWG
Display Size
Standard Sized Product
Wire Size
#14 AWG to #12 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Isolated Ground
Housing Color
White
Mount Type
Flush
IP Rating
Not Rated
Standards
CSA Certified, UL Listed
Resistance Properties
Corrosion Resistant
Flange Type
Non-Flanged
Sub-Category
Duplex Receptacles
Outlet Type
Decorator
Wiring Method - Plugs and Receptacles
Back and Side
Mounting Type
Flush
Surge Suppression
No
Power Indicator
No
Outlet Type - Plugs and Receptacles
Decorator Duplex
Application Environment
Commercial
Special Features
Isolated Ground
Tamper Resistant
No
Corrosion Resistant
No
Mounting Type - Plugs and Receptacles
Flush
Weather Resistant - Plugs and Receptacles
No
Number of Gangs
1
HP
1/2 hp
Weather Resistant
No
NEMA Configuration
5-15
Voltage
125VAC
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Material
Nylon
Type
Duplex
Includes Mounting Hardware
Yes
Connection Orientation
Straight
Horsepower Rating
1/2 hp
NEMA Enclosure Rating
1
Polarized
Yes
For Location
Indoor
Includes
Mounting Hardware
Surge Protection
No
Shrouded
No
Market
Commercial
Cover Type
No Cover
Grade
General Use
GFCI
No
Housing Material
Thermoplastic
AFCI
No
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Wattage
1875
Nema Rating
5-15R
Application
Heavy Duty
Material - Mounting Hardware
Screw Mounting
OEM Brand Name
Hubbell Wiring Device-Kellems

Description

The HUBBELL Receptacle is a 15 amp, 125V AC decorator duplex outlet suitable for commercial applications. It features an isolated ground configuration, which separates the ground contacts from the mounting strap. The receptacle has a flush mount design and compatible with back and side wiring using screw terminals, making it suitable for various installation requirements.


Key Features of the HUBBELL 15A Decorator Duplex Isolated Ground Receptacle:

  • Amperage/Voltage Rating: Rated for 15 amps at 125V AC

  • Isolated Ground: Designed to isolate ground contacts from the mounting strap; indicated by triangle marking on face

  • NEMA Configuration: 5-15R duplex outlet

  • Mounting Type: Flush mount with included screw hardware

  • Wiring Method: Back and side wired screw terminals; accepts #14 AWG to #12 AWG wire sizes

  • Material: Thermoplastic nylon housing

  • Standards: CSA Certified and UL Listed

  • Aesthetic Design: Style Line® decorator appearance
