  6. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Isolated Ground

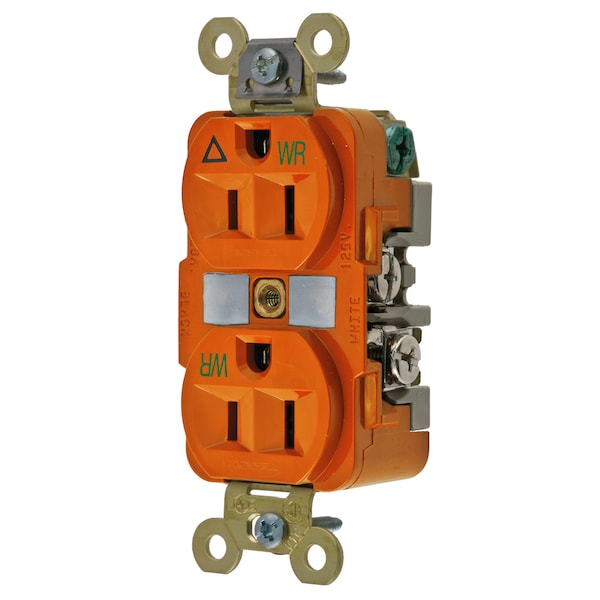

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Isolated Ground IG5262WR - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Isolated Ground

  • Mfr # IG5262WR

  • Zoro # G600622609

product price:  $34.16
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
IG5262WR
Zoro #
G600622609
UPC #
783585320380
Country of Origin
United States

Dimensions

Height
1.05 in
Width
1.33 in
Length
3.28 in
Wire Size
#14 AWG to #10 AWG
Display Size
Standard Sized Product
Dimensions
3.28 in x 1.33 in x 1.05 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Isolated Ground
Housing Color
Orange
Mount Type
Flush
Standards
ANSI, CSA C22.2, RoHS Compliant, UL 498, cULus
Resistance Properties
Weather Resistant
Flange Type
Non-Flanged
Application
Extra Heavy Duty Specification Grade
Material
Nylon
Ground Screw Material
#8-32 Brass, Multiple Drive (Green)
Face Shape
Traditional
Certification
UL Listed to UL 498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-6 requirements, Certified to CSA, C22.2, No. 42 File 285.
Base Material
Reinforced PET
Power Contacts Material
.037" (.9) Phosphor Bronze
Enhancement
Isolated Ground
Mounting Screw Material
Steel-Zinc Plated
Terminal Screw Material
#8-32 Brass /Ni plated for neutral
Device Color
Orange
Receptacle Style
Duplex
Horsepower
0.5
Other Available Colors
Orange, Gray, Ivory, Red
Face Style
Finder Groove
Auto Ground Clip Material
Stainless Steel
Poles and Wires
2 Pole, 3-Wire Grounding
Top Material
Nylon
Flammability
UL 94 V2 or better., Top: UL 94V-2, Base: UL 94V-0
Standard
NEMA
Dielectric Voltage
Withstands 2,000V minimum
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Current Interrupting
Certified for current interrupting at full rated current
Rating
15A, 125V
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Receptacle Grade
Extra Heavy Duty, Weather Resistant
Mounting Strap Material
.050" (1.3) Brass
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Product Type
Flush-receptacles
Series
Heavy Duty
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - Top: UL 94V-2, Base: UL 94V-0 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Environmental Conditions
Weather Resistant
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Material - Mounting Hardware
Screw Mounting
Style
Finder Groove Face
OEM Brand Name
Hubbell Wiring Device-Kellems
Number Of Wires
3-Wire
Dielectric Strength
Withstands 2,000V minimum
Industry Standard(s)
Certified to CSA, C22.2, No. 42 File 285 Fed. Spec. WC596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Wattage
1875 W
Horsepower - Maximum
0.5
Nema Rating
5-15R

Description

Hubbell Wiring Device Kellems, Straight Blade Devices, Receptacles,Weather Resistant Duplex, Commercial/Industrial Grade, Isolated Ground,15A 125V, 2-Pole 3-Wire Grounding, 5-15R, Orange
