Shop HUBBELL WIRING DEVICE-KELLEMS

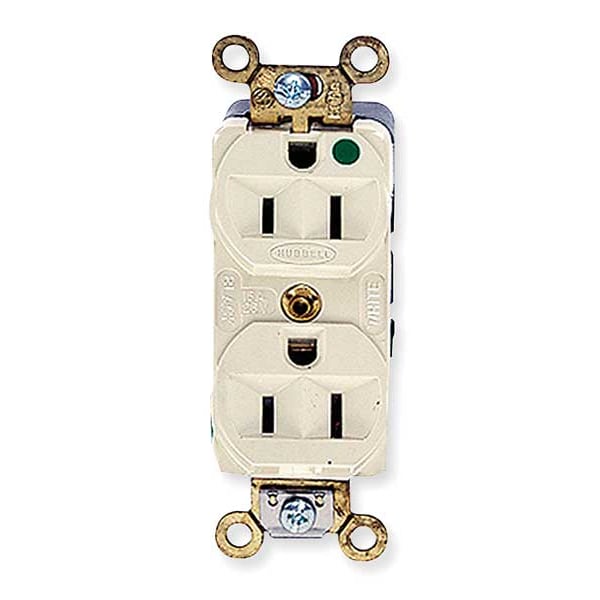

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Ivory

  • Mfr # HBL8200HI

  • Zoro # G1709093

product price:
$
28.55
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL8200HI
Zoro #
G1709093
UPC #
783585015835
Country of Origin
United States

Dimensions

Wire Size
#14 AWG to #10 AWG
Display Size
Slender/Compact
Dimensions
3.28 in x 1.33 in x 1.05 in
Overall Depth
1.1 in
Minimum Wire Size
14 AWG
Face Plate Width
1.3 in
Mount Hole Center-to-Center Height
3.3 in
Face Plate Height
2.7 in
Maximum Wire Size
10 AWG
Height
1.05 in
Width
1.33 in
Length
3.28 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Ivory
Mount Type
Flush
IP Rating
IP20
Standards
CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186
Resistance Properties
Impact Resistant
Flange Type
Non-Flanged
Mounting Type
Flush
Tamper Resistant
No
Color
Ivoire
Application Environment
Heavy Use Hospital Grade
Surge Suppression
No
Power Indicator
No
Wiring Method - Plugs and Receptacles
Back and Side
Weather Resistant
No
Voltage
125VAC
Number of Gangs
1
Weather Resistant - Plugs and Receptacles
No
Mounting Type - Plugs and Receptacles
Flush
Corrosion Resistant
No
Outlet Type
Duplex
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Material
Thermoplastic
NEMA Configuration
5-15
HP
1/2 hp
Sub-Category
Duplex Receptacles
Outlet Type - Plugs and Receptacles
Standard Duplex
Style
Finder Groove Face
Nema Rating
5-15R
Application
Slender/Compact Hospital Grade
Wattage
1875 W
Brand
Hubbell Wiring Device-Kellems
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Type
Receptacle
Carton Quantity
10
Amperage
15 A
Maximum Horsepower
0.5
Number Of Wires
3-Wire
Environmental Rating
Indoor Dry Unless Protected By Additional Means
Dielectric Strength
Withstands 2,000V minimum
Connectivity
Back and Side Wired Screw Terminals
Mounting Hardware Material
Screw Mounting
Series
Hospital Grade
Connection Orientation
Straight
Horsepower Rating
1/2 hp
Minimum Operating Temperature
-40 Degrees F
Polarized
Yes
Shrouded
No
Surge Protection
No
Maximum Operating Temperature
167 Degrees F
Contact Material
Brass
For Location
Indoor
Includes
Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover
AFCI
No
Market
Commercial
Cover Type
No Cover
Housing Material
Thermoplastic
UL 94 Flammability Rating
V-0
NEMA Enclosure Rating
1
Grade
Hospital Grade Fed. Spec.
GFCI
No
Includes Mounting Hardware
Yes
Flammability
UL 94 V-0
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Device Grade
Compact Slender
Current Interrupting
Certified for current interrupting at full rated current
Dielectric Voltage
Withstands 2,000V minimum
Poles and Wires
2 Pole, 3 Wire
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
Device Color
Ivory
Certifications
FED SPEC Listed
Industry Standard(s)
CSA Certified, C22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-0 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #14-#10 AWG stranded or solid copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
OEM Brand Name
Hubbell Wiring Device-Kellems
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Horsepower - Maximum
0.5
Material - Mounting Hardware
Screw Mounting

Description

HBL® Extra Heavy Duty Max Hospital Grade Devices - UL requirements for Hospital Grade devices is more stringent than those for standard devices. Hubbell receptacles are designed to meet and exceed the standards with Exclusive nickel-plated bypass contact design increases contact pressure, lowering the operating temperature; Four point grounding system provides redundant grounding for low resistance ground continuity in high abuse areas; Impact resistant deep face design prevents breakage. Because of these features and others, the benefit is performance, reliability and value for any health care facility.
• Slender/compact design
• Impact-resistant finder groove face
• Triple wipe contacts
