  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Grounded

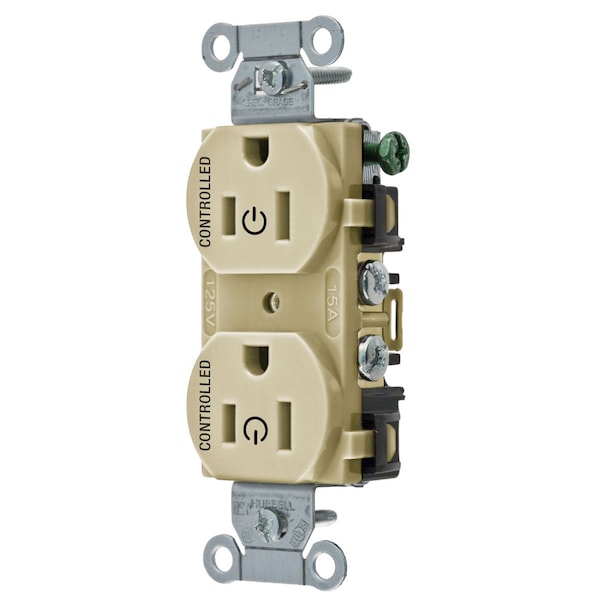

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Grounded BR15C2I - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Grounded

  • Mfr # BR15C2I

  • Zoro # G200701452

product price: $5.95
/ea
Sold in multiples of 2 for $11.90

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BR15C2I
Zoro #
G200701452
UPC #
783585551111
Country of Origin
China

Dimensions

Width
0.83 in
Height
3.28 in
Dimensions
1.32 in x 0.83 in x 3.28 in
Display Size
Standard Sized Product
Wire Size
#14 AWG to #10 AWG
Length
1.32 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Ivory
Standards
CSA Certified 22.2 No. 42, Fed. Spec. W-C-596, NEMA® WD-6 Compliant, UL Listed to UL 498 File No. E2186
Flange Type
Non-Flanged
Type
Two Controlled Faces
Material
Nylon
Color
Ivory
Number Of Wires
3-Wire
Series
Controlled
Nema Rating
5-15R
Application
Commercial Specification Grade
Amperage
15 A
Carton Quantity
10
Maximum Horsepower
0.5
Connectivity
Back and Side Wired
Dielectric Strength
Withstands 2,000V minimum
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Style
Smooth Face
Horsepower - Maximum
0.5

Description

Hubbell Wiring Device Kellems, Straight Blade Devices, Receptacles,Duplex, Load Controled, 15A 125V, 2-Pole 3-Wire Grounding, 5-15R, Backand Side Wired, Ivory
