  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Grounded

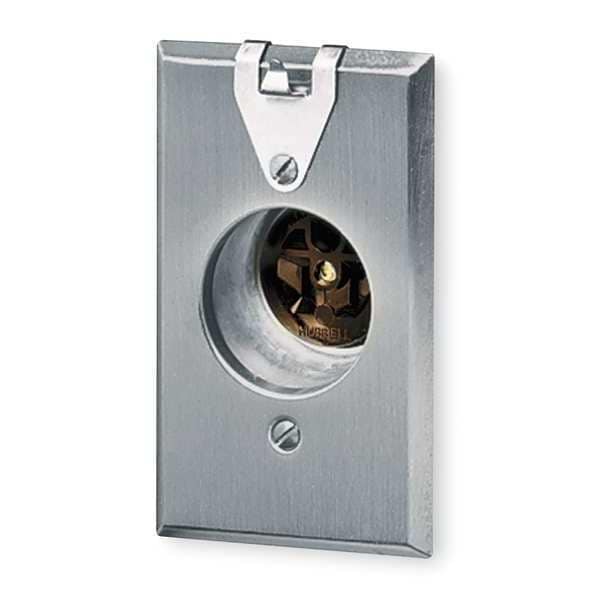

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Grounded HBL5235 - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Grounded

  • Mfr # HBL5235

  • Zoro # G2546975

product price: $62.49
/ea

Key Features

Receptacle Type
Single
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL5235
Zoro #
G2546975
UPC #
783585014111
Country of Origin
China

Dimensions

Height
1.62 in
Width
2.75 in
Length
4.5 in
Display Size
Standard Sized Product
Wire Size
#14 AWG to #10 AWG
Dimensions
4.5 in x 2.75 in x 1.62 in
Overall Depth
1 5/8 in
Overall Height
4 1/2 in
Overall Width
2 3/4 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Single
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back
Grounding
Grounded
Housing Color
Brown
Standards
CSA C22.2 No. 42, NEMA WD-6, UL 498
Resistance Properties
Tamper Resistant
Voltage
125V
Rating
15A, 125V
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Face Shape
Traditional
Receptacle Style
Single
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Horsepower
0.5
Device Color
Brown
Top Material
Phenolic
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
Certification
UL Listed, File E2186, Listed to UL Standard 498
Mounting Screw Material
Steel-Zinc Plated
Current Interrupting
Certified for current interrupting at full rated current
Specialty Type
Clock Hanger
Terminal Screw Material
#8-32 Brass /Ni plated for neutral
Flammability
UL 94 V2.
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Dielectric Voltage
Withstands 2,000V minimum
Base Material
Phenolic
Ground Screw Material
#8-32 Brass, Multiple Drive (Green)
Standard
NEMA
Plate Style
With Stainless Plate
Poles and Wires
2 Pole, 3-Wire Grounding
Power Contacts Material
.032" (.81) Brass
Product Type
Receptacle
Dielectric Strength
Withstands 2,000V minimum
Material - Mounting Hardware
Screw Mounting
Industry Standard(s)
Certified to CSA, C22.2, No. 42 File 285 NEMA® WD-6 Compliant UL Listed to UL498 File E2186
Horsepower - Maximum
0.5
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Number Of Wires
3-Wire
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-2 or better Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Nema Rating
5-15R
Application
Commercial Specification Grade
OEM Brand Name
Hubbell Wiring Device-Kellems
Wattage
1875 W
Shape
Rectangle
Case Color
Brown
Features
Electrical - Current Interrupting - Certified for Current Interrupting at Full Rated Current, Electrical - Dielectric Voltage - withstands 2,000V Minimum, Environmental - Flammability - UL 94 V-2 or Better, Environmental - Operating Temperatures - Maximum Continuous 75 Degrees C, Minimum -40 Degrees C (W/O Impact), Mechanical - Product Identification - Ratings are a Permanent Part of the Device, Mechanical - Terminal Accommodation - #14-#10 AWG Copper Stranded or Solid Conductor Only, Mechanical - Terminal Identification - Terminals Identified in Accordance with UL 498 and CSA

Description

Receptacle, Shape Rectangle, Case Color Brown, Voltage 125V
