  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Grounded

This item is Discontinued.

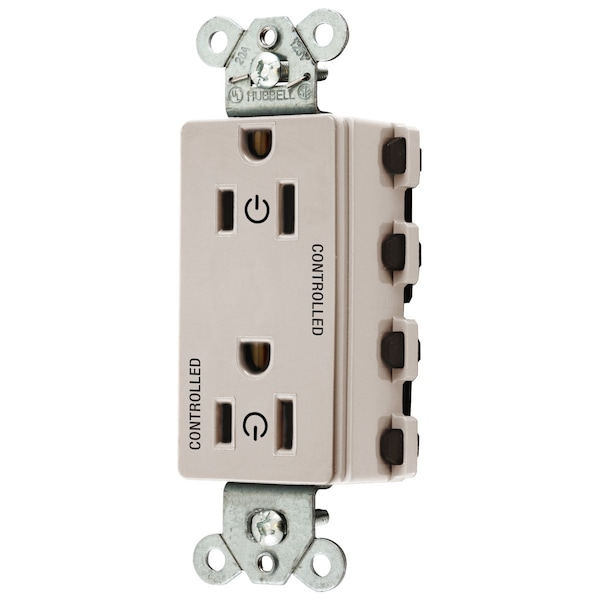

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Grounded SNAP2152C2LA

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Grounded (Discontinued)

  • Mfr # SNAP2152C2LA
  • Zoro # G900490021
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SNAP2152C2LA
Zoro #
G900490021
UPC #
783585555232
Country of Origin
China

Dimensions

Height
1.1 in
Width
1.64 in
Display Size
Standard Sized Product
Wire Size
#12 AWG
Dimensions
3.28 in x 1.64 in x 1.1 in
Length
3.28 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Snap In Module
Grounding
Grounded
Housing Color
Light Almond
Standards
CSA C22.2 No. 42, NEMA WD-6, UL 498, UL Federal Specification WC-596
Flange Type
Non-Flanged
Type
Two Controlled Faces
Color
Light Almond
Series
Permanently Marked Receptacles
Carton Quantity
10
Nema Rating
5-15R
Amperage
15 A
Wattage
1875 W
Number Of Conductors
3-Wire Grounding
Dielectric Strength
Withstands 2,000V minimum
Style
Style Line Decorator
Maximum Horsepower
0.5
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Material
Nylon
Connectivity
Connectorized
Environmental Rating
Indoor Dry Unless Protected By Additional Means
Number Of Wires
3-Wire
Brand
Hubbell Wiring Device-Kellems
Application
SNAPConnect Permanently Marked
Industry Standard(s)
UL Listed
OEM Brand Name
Hubbell Wiring Device-Kellems
Horsepower - Maximum
0.5
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Performance
Electrical: Current Interrupting- Certified for current interrupting at full rated current Electrical: Dielectric Voltage- Withstands 2,000V minimum Mechanical: Product Identification Ratings are a permanent part of the device Environmental: Flammability- UL 94V-2 Environmental: Operating Temperature- Maximum continuous 75°C minimum -40°C (w/o impact)

Description

Hubbell Wiring Device Kellems, Straight Blade Devices, Receptacle,Decorator Duplex, SNAPConnect, Controlled, 15A 125V, 2-Pole 3-WireGrounding, 5-15R, Light Almond
