  6. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Grounded

This item is Discontinued.

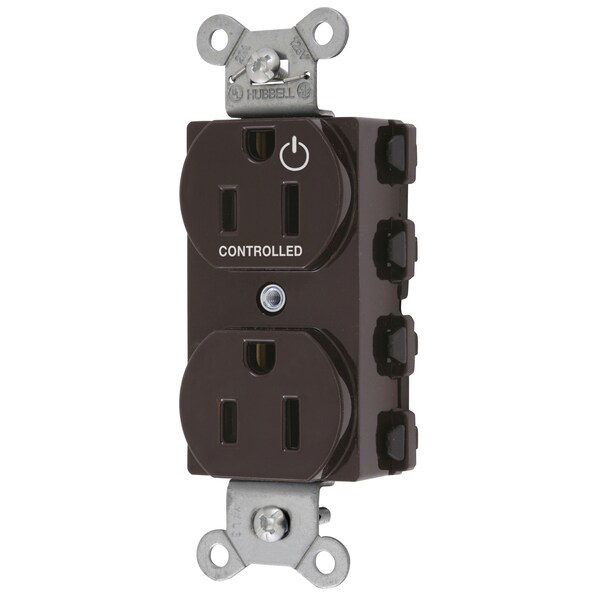

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Grounded SNAP5262C1

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Grounded (Discontinued)

  • Mfr # SNAP5262C1
  • Zoro # G100490012
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SNAP5262C1
Zoro #
G100490012
UPC #
783585555027
Country of Origin
China

Dimensions

Width
1.64 in
Height
1.1 in
Display Size
Standard Sized Product
Wire Size
#12 AWG
Dimensions
3.28 in x 1.64 in x 1.1 in
Length
3.28 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Snap In Module
Grounding
Grounded
Housing Color
Brown
Standards
CSA C22.2, Fed. Spec. W-C-596, NEMA WD-6, No. 42, UL 498
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Color
Brown
Type
One Controlled Face, Split Circuit Hot Tab
Connectivity
Connectorized
Number Of Conductors
3-Wire Grounding
Brand
Hubbell Wiring Device-Kellems
Amperage
15 A
Accessory Type
Audible SNAP, indicates solid connection;Reduces installation time;Split Circuit, Half Controlled, Power symbol is clearly visible
Wattage
1875 W
Carton Quantity
10
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Dielectric Strength
Withstands 2,000V minimum
Style
Smooth Face
Series
Permanently Marked Receptacles
Number Of Wires
3-Wire
Maximum Horsepower
0.5
Nema Rating
5-15R
Material
Nylon
Application
SNAPConnect Permanently Marked
Environmental Rating
Indoor Dry Unless Protected By Additional Means
Industry Standard(s)
UL Listed
Performance
Electrical: Current Interrupting- Certified for current interrupting at full rated current Electrical: Dielectric Voltage- Withstands 2,000V minimum Mechanical: Product Identification Ratings are a permanent part of the device Environmental: Flammability- UL 94V-2 Environmental: Operating Temperature- Maximum continuous 75°C minimum -40°C (w/o impact)
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Horsepower - Maximum
0.5
OEM Brand Name
Hubbell Wiring Device-Kellems

Description

Hubbell Wiring Device Kellems, Straight Blade Devices, Receptacle,Duplex, SNAPConnect, 1/2 Controlled, 15A 125V, 2-Pole 3-Wire Grounding,5-15R, Brown
