  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded

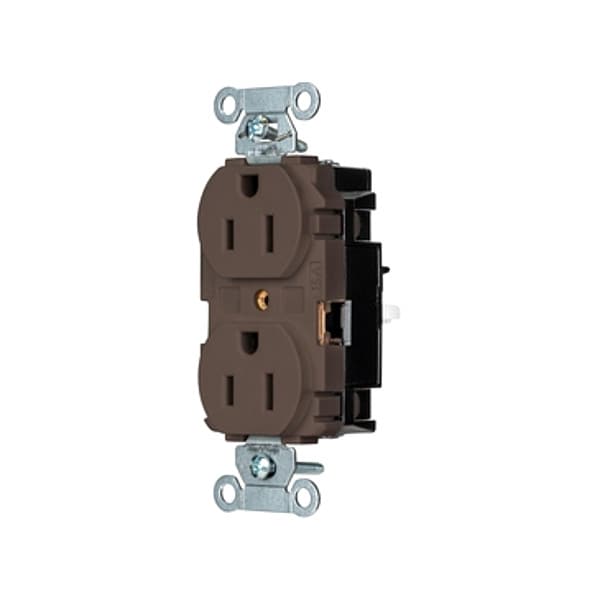

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded 5252ST - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded

  • Mfr # 5252ST

  • Zoro # G710877180

product price: $7.65
/ea
Sold in multiples of 10 for $76.50

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5252ST
Zoro #
G710877180
UPC #
783585727080
Country of Origin
China

Dimensions

Minimum Wire Size
14 AWG
Face Plate Height
2.8 in
Overall Depth
1.4 in
Mount Hole Center-to-Center Height
3.3 in
Maximum Wire Size
10 AWG
Face Plate Width
1.6 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Spring Clamp Terminals
Wiring Method
Back
Grounding
Grounded
Housing Color
Brown
Mount Type
Surface
IP Rating
IP20
Standards
CSA Certified, NEMA WD-1, NEMA WD-6, UL Listed
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Connection Orientation
Straight
AFCI
No
Number of Outlets
2
For Environment
Dry
Market
Commercial
Number of Gangs
1
Includes Mounting Hardware
Yes
Shrouded
No
Cover Type
No Cover
Housing Material
Thermoplastic
Maximum Operating Temperature
167 Degrees F
NEMA Enclosure Rating
1
For Location
Indoor
Grade
Federal Specification
UL 94 Flammability Rating
V-2
GFCI
No
Features
Easy Access Split Circuit Tab, No Need for Screwdriver and Torque Wrench, Spring Termination Eliminates Strand Relaxation, Triple and Double Wipe Contacts
Horsepower Rating
1/2 hp
Minimum Operating Temperature
-40 Degrees F
Hub Type
Feed Through
Surge Protection
No
Polarized
Yes
Includes
Mounting Hardware
Contact Material
Copper Alloy

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Brown, Housing Material Thermoplastic, Mount Type Surface, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Tamper Resistant
