  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded

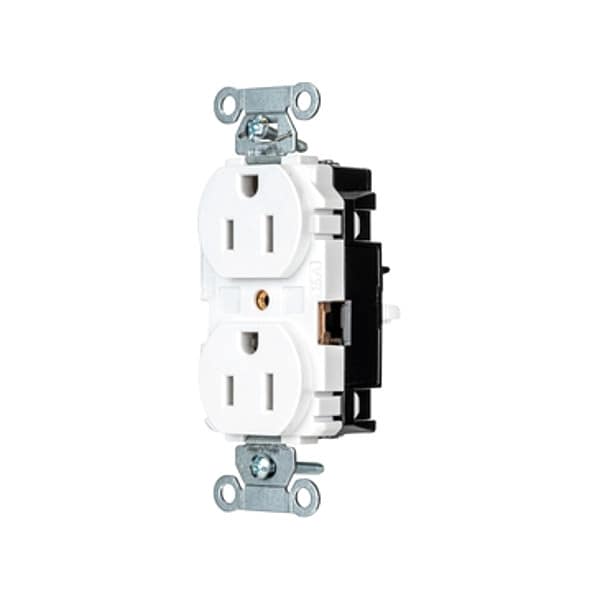

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded 5252STW - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded

  • Mfr # 5252STW

  • Zoro # G610105413

product price: $7.89
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5252STW
Zoro #
G610105413
UPC #
783585727158
Country of Origin
China

Dimensions

Face Plate Width
1.6 in
Maximum Wire Size
10 AWG
Face Plate Height
2.8 in
Mount Hole Center-to-Center Height
3.3 in
Overall Depth
1.4 in
Minimum Wire Size
14 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Spring Clamp Terminals
Wiring Method
Back
Grounding
Grounded
Housing Color
White
Mount Type
Surface
IP Rating
IP20
Standards
CSA Certified, NEMA WD-1, NEMA WD-6, UL Listed
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Number of Gangs
1
Includes
Mounting Hardware
For Environment
Dry
Market
Commercial
Features
Easy Access Split Circuit Tab, No Need for Screwdriver and Torque Wrench, Spring Termination Eliminates Strand Relaxation, Triple and Double Wipe Contacts
UL 94 Flammability Rating
V-2
Connection Orientation
Straight
Maximum Operating Temperature
167 Degrees F
Contact Material
Copper Alloy
Housing Material
Thermoplastic
Horsepower Rating
1/2 hp
Grade
Federal Specification
Number of Outlets
2
Minimum Operating Temperature
-40 Degrees F
Includes Mounting Hardware
Yes
For Location
Indoor
Shrouded
No
AFCI
No
Hub Type
Feed Through
Polarized
Yes
NEMA Enclosure Rating
1
Cover Type
No Cover
GFCI
No
Surge Protection
No

Description

The HUBBELL Duplex Straight Blade Receptacle is a for commercial use tamper-resistant electrical outlet rated for indoor, dry locations.


Key Features of the HUBBELL Duplex Straight Blade Receptacle:

  • Current Rating: Rated for 15 A at 125V AC

  • NEMA Configuration: 5-15R duplex type with two outlets

  • Wire Connection Type: Push-in back wiring using screwless spring termination; allows wire connection via insertion and plunger mechanism

  • Contact Material: Copper alloy contacts with triple and double wipe design

  • Tamper Resistant: Tamper-resistant feature helps reduce risk of unintended object insertion

  • Grounding: Grounded configuration; three-wire (2-pole) setup

  • Housing Material: Thermoplastic housing in white color

  • Mount Type: Surface mount; includes mounting hardware

  • Circuit Tab Feature: Easy access split circuit tab for flexible wiring options

  • Operating Temperature Range: -40°F to 167°F (-40°C to 75°C)

  • NEMA Enclosure Rating/IP Rating: NEMA 1 / IP20 (for indoor use only)

  • Standards Compliance: CSA Certified, UL Listed, Federal Specification W-C-596, NEMA WD-6 compliant
