  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded

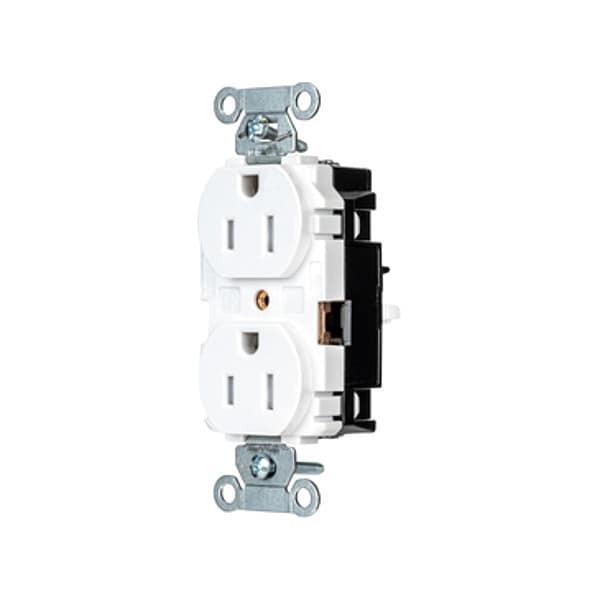

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded 5262STWTR - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded

  • Mfr # 5262STWTR

  • Zoro # G710877203

product price: $10.87
/ea
Sold in multiples of 10 for $108.70

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5262STWTR
Zoro #
G710877203
UPC #
783585727257
Country of Origin
China

Dimensions

Face Plate Height
2.8 in
Mount Hole Center-to-Center Height
3.3 in
Minimum Wire Size
14 AWG
Overall Depth
1.4 in
Maximum Wire Size
10 AWG
Face Plate Width
1.6 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Spring Clamp Terminals
Wiring Method
Back
Grounding
Grounded
Housing Color
White
Mount Type
Surface
IP Rating
IP20
Standards
CSA Certified, NEMA WD-1, NEMA WD-6, UL Listed
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Contact Material
Copper Alloy
Maximum Operating Temperature
167 Degrees F
NEMA Enclosure Rating
1
Number of Gangs
1
Surge Protection
No
Housing Material
Thermoplastic
Minimum Operating Temperature
-40 Degrees F
Horsepower Rating
1/2 hp
For Environment
Dry
UL 94 Flammability Rating
V-2
Hub Type
Feed Through
Features
Easy Access Split Circuit Tab, No Need for Screwdriver and Torque Wrench, Spring Termination Eliminates Strand Relaxation, Triple and Double Wipe Contacts
Market
Commercial
Grade
Federal Specification
Shrouded
No
For Location
Indoor
AFCI
No
Number of Outlets
2
Polarized
Yes
Connection Orientation
Straight
GFCI
No
Includes Mounting Hardware
Yes
Cover Type
No Cover
Includes
Mounting Hardware

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color White, Housing Material Thermoplastic, Mount Type Surface, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Tamper Resistant
