  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded

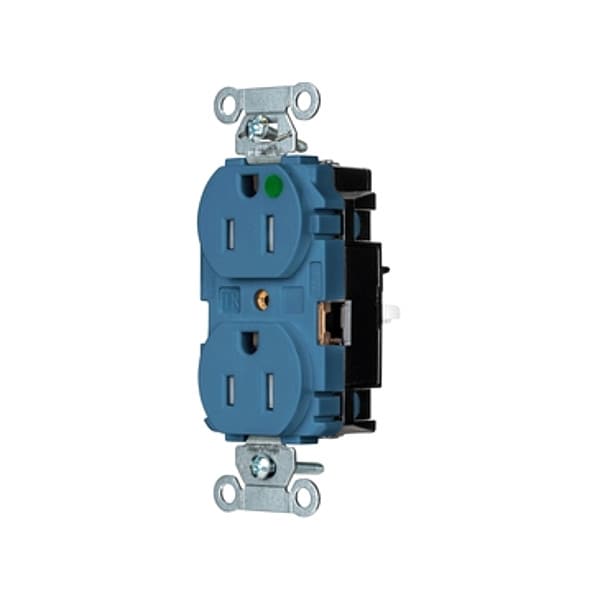

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded 8200STBLTR - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded

  • Mfr # 8200STBLTR

  • Zoro # G210986290

product price: $21.80
/ea
Sold in multiples of 10 for $218.00

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8200STBLTR
Zoro #
G210986290
UPC #
783585726779
Country of Origin
China

Dimensions

Face Plate Width
1.6 in
Maximum Wire Size
10 AWG
Overall Depth
1.4 in
Minimum Wire Size
14 AWG
Mount Hole Center-to-Center Height
3.3 in
Face Plate Height
2.8 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Spring Clamp Terminals
Wiring Method
Back
Grounding
Grounded
Housing Color
Blue
Mount Type
Surface
IP Rating
IP20
Standards
CSA Certified 22.2 No 42 File 285, Fed. Spec. W-C-596, NEMA: WD-6, UL 498 File No E2186
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Shrouded
No
Connection Orientation
Straight
Minimum Operating Temperature
-40 Degrees F
Number of Gangs
1
For Environment
Dry
Includes Mounting Hardware
Yes
Polarized
Yes
Grade
Hospital Grade
Horsepower Rating
1/2 hp
Contact Material
Copper Alloy
UL 94 Flammability Rating
V-2
Maximum Operating Temperature
167 Degrees F
Surge Protection
No
Includes
Mounting Hardware
Market
Commercial
Number of Outlets
2
NEMA Enclosure Rating
1
AFCI
No
Features
Easy Access Split Circuit Tab, No Need for Screwdriver and Torque Wrench, Spring Termination Eliminates Strand Relaxation, Triple and Double Wipe Contacts
Housing Material
Thermoplastic
Hub Type
Feed Through
Cover Type
No Cover
GFCI
No
For Location
Indoor

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Blue, Housing Material Thermoplastic, Mount Type Surface, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Tamper Resistant
