  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded

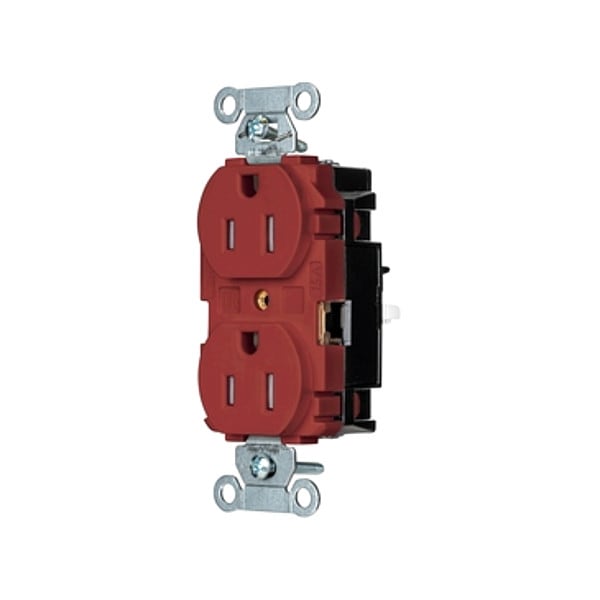

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded BR15STRTR - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded

  • Mfr # BR15STRTR

  • Zoro # G010986230

product price: $9.69
/ea
Sold in multiples of 100 for $969.00

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BR15STRTR
Zoro #
G010986230
UPC #
783585727844
Country of Origin
China

Dimensions

Face Plate Height
2.8 in
Maximum Wire Size
10 AWG
Overall Depth
1.4 in
Face Plate Width
1.6 in
Mount Hole Center-to-Center Height
3.3 in
Minimum Wire Size
14 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Spring Clamp Terminals
Wiring Method
Back
Grounding
Grounded
Housing Color
Red
Mount Type
Surface
IP Rating
IP20
Standards
CSA Certified 22.2 No 42 File 285, NEMA: WD-6, UL 498 File No E2186
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
GFCI
No
Contact Material
Copper Alloy
For Environment
Dry
Market
Commercial
Includes
Mounting Hardware
Housing Material
Thermoplastic
For Location
Indoor
Shrouded
No
Cover Type
No Cover
UL 94 Flammability Rating
V-2
Grade
General Use
Minimum Operating Temperature
-40 Degrees F
Connection Orientation
Straight
Hub Type
Feed Through
Visual Indicator Lights
Power Connected
Number of Gangs
1
Maximum Operating Temperature
167 Degrees F
NEMA Enclosure Rating
1
AFCI
No
Includes Mounting Hardware
Yes
Number of Outlets
2
Polarized
Yes
Features
Easy Access Split Circuit Tab, No Need for Screwdriver and Torque Wrench, Spring Termination Eliminates Strand Relaxation, Triple and Double Wipe Contacts
Surge Protection
No
Horsepower Rating
1/2 hp

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Red, Housing Material Thermoplastic, Mount Type Surface, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Tamper Resistant
