  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded

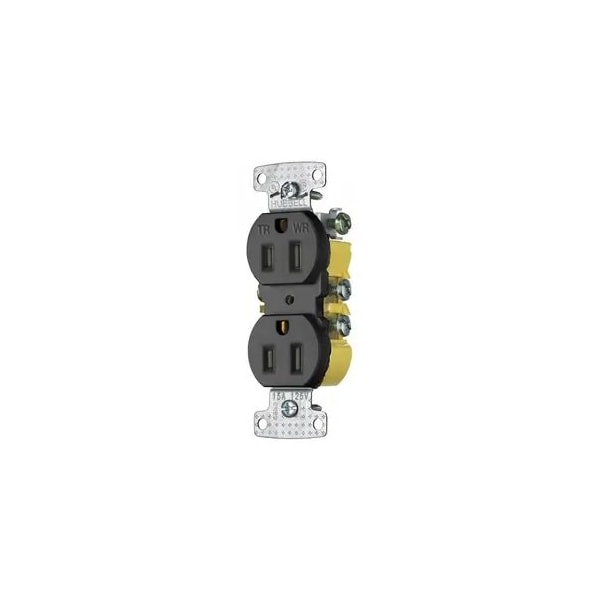

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded DR15STBK - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded

  • Mfr # DR15STBK

  • Zoro # G510986198

product price: $8.15
/ea
Sold in multiples of 100 for $815.00

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DR15STBK
Zoro #
G510986198
UPC #
783585728063
Country of Origin
China

Dimensions

Face Plate Height
2.8 in
Minimum Wire Size
14 AWG
Face Plate Width
1.6 in
Maximum Wire Size
10 AWG
Overall Depth
1.4 in
Mount Hole Center-to-Center Height
3.3 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Spring Clamp Terminals
Wiring Method
Back
Grounding
Grounded
Housing Color
Black
Mount Type
Surface
IP Rating
IP20
Standards
CSA Certified 22.2 No 42 File 285, NEMA: WD-6, UL 498 File No E2186
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Housing Material
Thermoplastic
UL 94 Flammability Rating
V-2
Shrouded
No
Cover Type
No Cover
Maximum Operating Temperature
167 Degrees F
Surge Protection
No
Features
Easy Access Split Circuit Tab, No Need for Screwdriver and Torque Wrench, Spring Termination Eliminates Strand Relaxation, Triple and Double Wipe Contacts
For Environment
Dry
Includes
Mounting Hardware
Grade
General Use
Includes Mounting Hardware
Yes
Connection Orientation
Straight
For Location
Indoor
Number of Gangs
1
NEMA Enclosure Rating
1
Visual Indicator Lights
Power Connected
Hub Type
Feed Through
Polarized
Yes
Minimum Operating Temperature
-40 Degrees F
Horsepower Rating
1/2 hp
Contact Material
Copper Alloy
GFCI
No
AFCI
No
Number of Outlets
2
Market
Commercial

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Black, Housing Material Thermoplastic, Mount Type Surface, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Tamper Resistant
