  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded

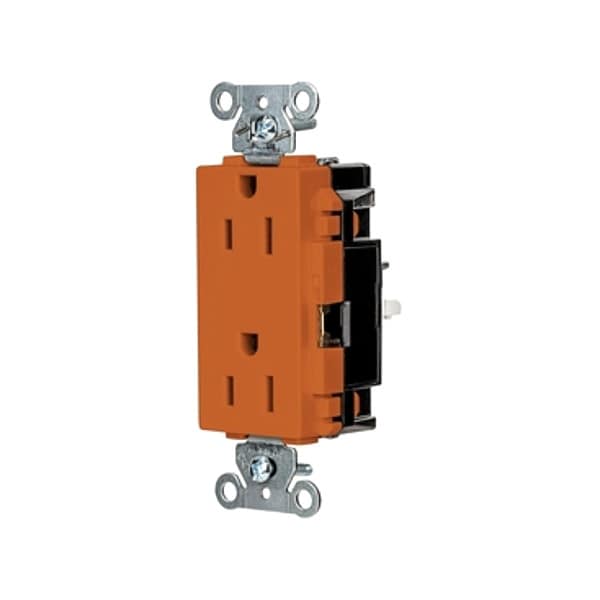

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded DR15STO - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded

  • Mfr # DR15STO

  • Zoro # G610986227

product price: $7.75
/ea
Sold in multiples of 100 for $775.00

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DR15STO
Zoro #
G610986227
UPC #
783585728131
Country of Origin
China

Dimensions

Minimum Wire Size
14 AWG
Face Plate Width
1.6 in
Maximum Wire Size
10 AWG
Overall Depth
1.4 in
Face Plate Height
2.8 in
Mount Hole Center-to-Center Height
3.3 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Spring Clamp Terminals
Wiring Method
Back
Grounding
Grounded
Housing Color
Orange
Mount Type
Surface
IP Rating
IP20
Standards
CSA Certified 22.2 No 42 File 285, NEMA: WD-6, UL 498 File No E2186
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Surge Protection
No
Polarized
Yes
Connection Orientation
Straight
AFCI
No
Visual Indicator Lights
Power Connected
Cover Type
No Cover
For Environment
Dry
For Location
Indoor
Shrouded
No
Market
Commercial
Horsepower Rating
1/2 hp
Includes Mounting Hardware
Yes
Minimum Operating Temperature
-40 Degrees F
NEMA Enclosure Rating
1
GFCI
No
UL 94 Flammability Rating
V-2
Number of Outlets
2
Includes
Mounting Hardware
Features
Easy Access Split Circuit Tab, No Need for Screwdriver and Torque Wrench, Spring Termination Eliminates Strand Relaxation, Triple and Double Wipe Contacts
Grade
General Use
Housing Material
Thermoplastic
Maximum Operating Temperature
167 Degrees F
Contact Material
Copper Alloy
Hub Type
Feed Through
Number of Gangs
1

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Orange, Housing Material Thermoplastic, Mount Type Surface, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Tamper Resistant
