  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded

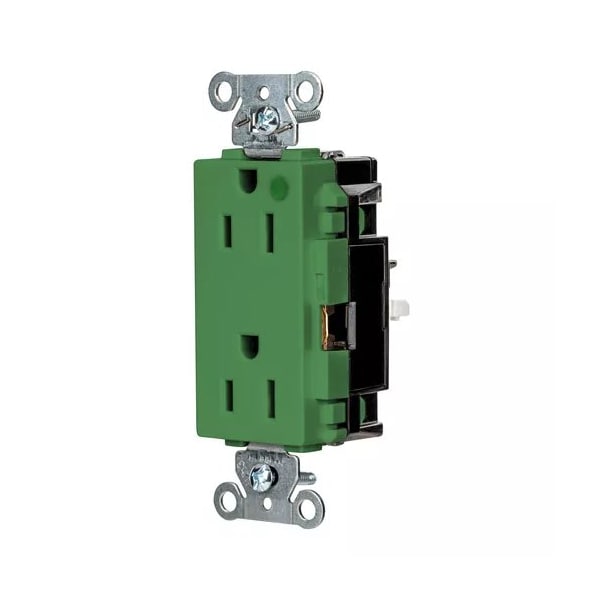

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded HBL2172STGN - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded

  • Mfr # HBL2172STGN

  • Zoro # G010986193

product price: $33.55
/ea
Sold in multiples of 10 for $335.50

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL2172STGN
Zoro #
G010986193
UPC #
783585687902
Country of Origin
China

Dimensions

Mount Hole Center-to-Center Height
3.3 in
Overall Depth
1.4 in
Face Plate Width
1.6 in
Minimum Wire Size
14 AWG
Face Plate Height
2.8 in
Maximum Wire Size
10 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Spring Clamp Terminals
Wiring Method
Back
Grounding
Grounded
Housing Color
Green
Mount Type
Surface
IP Rating
IP20
Standards
CSA C22.2 No. 42, NEMA WD-6, UL 498, UL Federal Specification WC-596
Resistance Properties
Chemical Resistant, Corrosion Resistant, Impact Resistant
Flange Type
Non-Flanged
GFCI
No
For Environment
Dry
Includes Mounting Hardware
Yes
For Location
Indoor
Features
Easy Access Split Circuit Tab, No Need for Screwdriver and Torque Wrench, Spring Termination Eliminates Strand Relaxation, Triple and Double Wipe Contacts
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
167 Degrees F
Includes
Mounting Hardware
Number of Gangs
1
Horsepower Rating
1/2 hp
AFCI
No
Hub Type
Feed Through
Connection Orientation
Straight
NEMA Enclosure Rating
1
Housing Material
Thermoplastic
Cover Type
No Cover
Surge Protection
No
Market
Commercial
Grade
Hospital Grade
Number of Outlets
2
UL 94 Flammability Rating
V-2
Contact Material
Copper Alloy
Shrouded
No
Polarized
Yes

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Green, Housing Material Thermoplastic, Mount Type Surface, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Chemical Resistant, Corrosion Resistant, Impact Resistant
