  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded

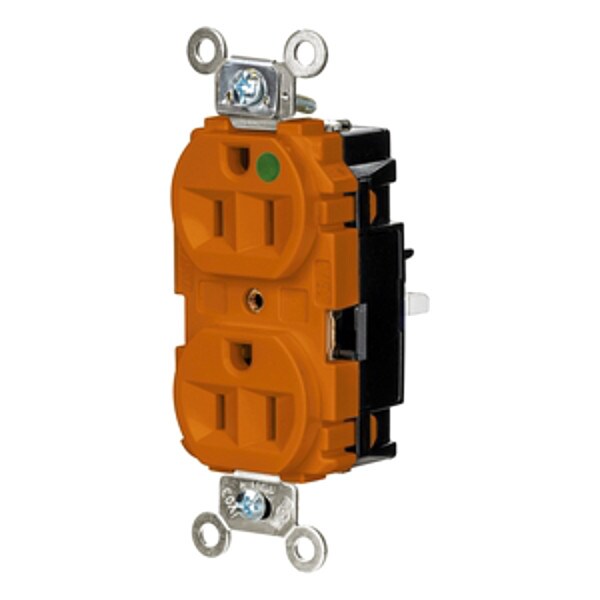

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded HBL8200STO - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded

  • Mfr # HBL8200STO

  • Zoro # G110986185

product price: $33.21
/ea
Sold in multiples of 10 for $332.10

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL8200STO
Zoro #
G110986185
UPC #
783585687339
Country of Origin
China

Dimensions

Face Plate Width
1.6 in
Mount Hole Center-to-Center Height
3.3 in
Overall Depth
1.4 in
Minimum Wire Size
14 AWG
Face Plate Height
2.8 in
Maximum Wire Size
10 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Spring Clamp Terminals
Grounding
Grounded
Housing Color
Orange
Mount Type
Surface
IP Rating
IP20
Standards
ANSI, CSA C22.2, RoHS Compliant, UL 498, cULus
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Wiring Method
Back
Market
Commercial
Connection Orientation
Straight
AFCI
No
Number of Outlets
2
For Location
Indoor
Polarized
Yes
Includes Mounting Hardware
Yes
Minimum Operating Temperature
-40 Degrees F
For Environment
Dry
GFCI
No
Number of Gangs
1
UL 94 Flammability Rating
V-2
NEMA Enclosure Rating
1
Maximum Operating Temperature
167 Degrees F
Hub Type
Feed Through
Features
Easy Access Split Circuit Tab, No Need for Screwdriver and Torque Wrench, Spring Termination Eliminates Strand Relaxation, Triple and Double Wipe Contacts
Cover Type
No Cover
Housing Material
Thermoplastic
Horsepower Rating
1/2 hp
Includes
Mounting Hardware
Grade
Hospital Grade
Shrouded
No
Surge Protection
No
Contact Material
Copper Alloy

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Orange, Housing Material Thermoplastic, Mount Type Surface, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Chemical Resistant, Corrosion Resistant, Impact Resistant
