  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

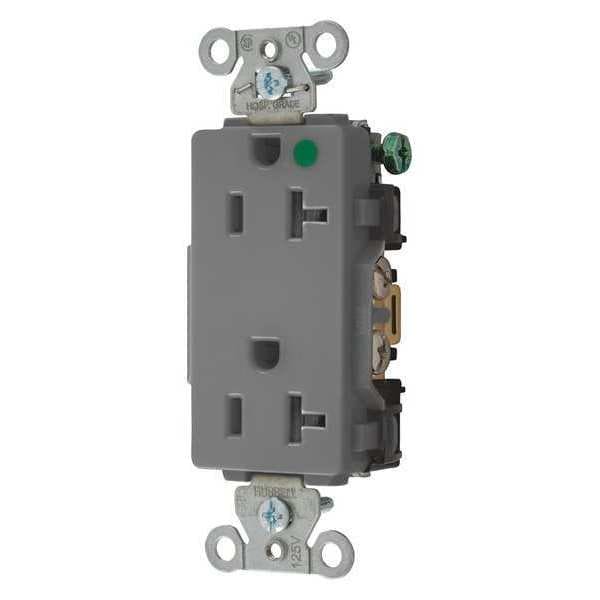

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded 2182GY - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # 2182GY

  • Zoro # G4440278

product price: $23.45
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2182GY
Zoro #
G4440278
UPC #
783585196596
Country of Origin
Mexico

Dimensions

Height
1.15 in
Width
1.57 in
Overall Depth
1.2 in
Mount Hole Center-to-Center Height
3.3 in
Face Plate Height
2.7 in
Minimum Wire Size
12 AWG
Maximum Wire Size
10 AWG
Face Plate Width
1.6 in
Wire Size
#12 AWG to #10 AWG
Display Size
Standard Sized Product
Length
3.28 in
Dimensions
3.28 in x 1.57 in x 1.15 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Gray
Mount Type
Flush
IP Rating
IP20
Standards
CSA Certified C22.2, Federal Specification W-C-596, NEMA WD-6, UL 498
Resistance Properties
Impact Resistant
Flange Type
Non-Flanged
Wiring Method - Plugs and Receptacles
Back and Side
NEMA Rating
1
Application Environment
Hospital Grade
Number of Gangs
1
Mounting Type - Plugs and Receptacles
Flush
Material
Nylon
Power Indicator
No
Tamper Resistant
No
Voltage
125VAC
Surge Suppression
No
Mounting Type
Flush
Corrosion Resistant
No
Outlet Type - Plugs and Receptacles
Decorator Duplex
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
HP
1 hp
Weather Resistant
No
NEMA Configuration
5-20
Sub-Category
Duplex Receptacles
Outlet Type
Decorator
Weather Resistant - Plugs and Receptacles
No
For Location
Indoor
Maximum Operating Temperature
167 Degrees F
Cover Type
No Cover
Contact Material
Brass
UL 94 Flammability Rating
V-2
Shrouded
No
Polarized
Yes
NEMA Enclosure Rating
1
Grade
Hospital Grade Fed. Spec.
Surge Protection
No
Housing Material
Nylon
GFCI
No
AFCI
No
Horsepower Rating
1 hp
Connection Orientation
Straight
Minimum Operating Temperature
-40 Degrees F
Includes
Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover
Includes Mounting Hardware
Yes
Ground Contacts
Brass
Base
PBT
Dielectric Voltage
Withstands 2,000V minimum
Current Interrupting
Certified for current interrupting at full rated current
Terminal Accommodation
#12-#10 AWG stranded or solid copper wire only
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Operating Temperature
Maximum continuous 75°C; minimum -40°C (w/o impact)
Automatic Self-grounding Staple
Stainless steel
Mounting Strap
Galvalized steel
Clamping Plate
Plated steel
Device Color
Gray
Mounting Screws
Zinc plated steel
Power Contacts
Brass
Flammability
UL 94V-2
Face
Nylon
Dielectric Strength
Withstands 2,000V minimum
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Application
Hubbell-Pro Heavy Duty Hospital Grade
Industry Standard(s)
Certified to CSA, C22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Style
Style Line decorator
Series
Hubbell-Pro
Material - Mounting Hardware
Screw Mounting
Wattage
2500 W
Horsepower - Maximum
1
OEM Brand Name
Hubbell Wiring Device-Kellems
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #12-#10 AWG stranded or solid copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Housing Color Gray, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Impact Resistant, Standards CSA Certified C22.2, Federal Specification W-C-596, NEMA WD-6, UL 498
