  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

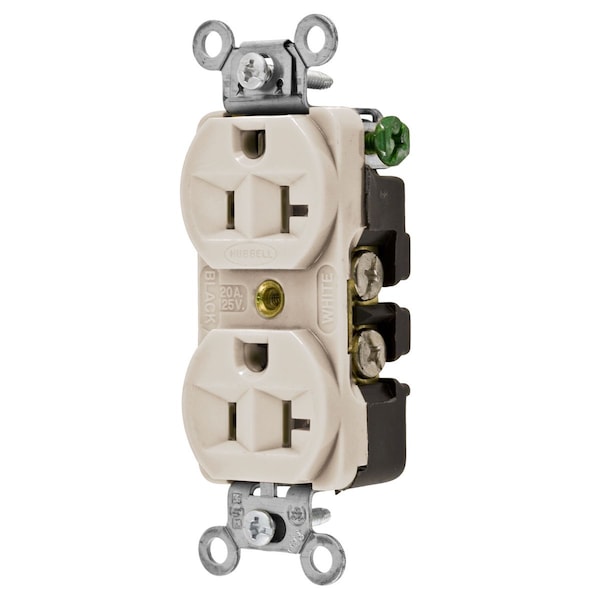

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded 5362LA - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # 5362LA

  • Zoro # G600701267

product price: $9.05
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5362LA
Zoro #
G600701267
UPC #
783585127750
Country of Origin
United States

Dimensions

Size
Standard Sized Product
Height
1.09 in
Width
1.41 in
Wire Size
#12 AWG to #10 AWG
Display Size
Standard Sized Product
Dimensions
3.28 in x 1.41 in x 1.09 in
Length
3.28 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Light Almond
Mount Type
Flush
Standards
CSA C22.2 No. 42, NEMA WD-6, UL 498, UL Federal Specification WC-596
Flange Type
Non-Flanged
Color
Light Almond
Material
Thermoplastic/Composite
Mounting Type
Screw Mount
Type
Standard Duplex
Mounting Hardware Material
Screw Mounting
Standard
UL File No. E2186, Certified to CSA 22.2, No. 42 File 285, Fed. Spec. W-C-596, NEMA WD-6 Compliant
Connectivity
Back and Side Wired
Series
Hubbell-PRO
Wattage
1875 W
Style
Finder Groove Face
Temp. Rating
Maximum continuous 75°C; minimum -40°C (w/o impact)
Nema Rating
5-20R
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Application
Hubbell-Pro Extra Heavy Duty
Carton Quantity
10
Environmental Rating
Indoor Dry unless protected by additional means
Number Of Wires
3-Wire
Maximum Horsepower
1
Amperage
20 A
Dielectric Strength
Withstands 2,000V minimum
Brand
Hubbell Wiring Device-Kellems
Poles and Wires
2 Pole, 3-Wire Grounding
Base Material
Nylon
Product Type
Flush-receptacles
Face Shape
Traditional
Dielectric Voltage
Withstands 2,000V minimum
Terminal Accommodation
#12-#10 AWG copper stranded or solid conductor only
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current
Other Available Colors
Brown, Ivory, White, Office White, Almond, Light Almond, Gray, Black, Red, Blue
Terminal Identification
Terminal wire leads identified in accordance with UL 498
Device Color
Light Almond
Face Style
Finder Groove Face
Current Interrupting
Certified for current interrupting at full rated current
Mounting Strap Material
.040" (1) Steel (Galvanized)
Top Material
Nylon
Auto Ground Clip Material
Stainless Steel
Flammability
UL 94 V2.
Power Contacts Material
.030" (.8) Brass
Receptacle Style
Duplex
Mounting Screw Material
Steel-Zinc Plated
Certification
UL Listed to UL498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-1 Heavy Duty and WD-6 requirements, Certified to CSA, C22.2, No. 42 file 285.
Rating
20A, 125V
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Receptacle Grade
Hubbell-Pro Series
Horsepower
1
Industry Standard(s)
UL File No. E2186, Certified to CSA 22.2, No. 42 File 285, Fed. Spec. W-C-596, NEMA® WD-6 Compliant
OEM Brand Name
Hubbell Wiring Device-Kellems
Horsepower - Maximum
1
Environmental Conditions
Indoor Dry unless protected by additional means
Material - Mounting Hardware
Screw Mounting
Temperature Rating
Maximum continuous 75°C; minimum -40°C (w/o impact)
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-2 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #12-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminal wire leads identified in accordance with UL 498

Description

Hubbell Wiring Device Kellems, Straight Blade Devices, Receptacles,Duplex, Hubbell-Pro Industrial Grade, 20A 125V, 2-Pole 3-Wire Grounding,5-20R, Light Almond, Single Pack
