  6. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

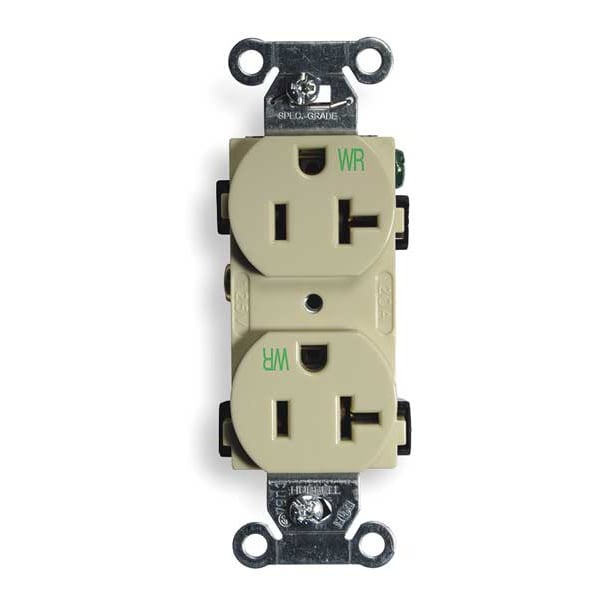

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded BR20IWR - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # BR20IWR

  • Zoro # G2253212

product price:  $7.99
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BR20IWR
Zoro #
G2253212
UPC #
783585144658
Country of Origin
China

Dimensions

Mount Hole Center-to-Center Height
3.3 in
Overall Depth
3.3 in
Face Plate Width
1.3 in
Minimum Wire Size
12 AWG
Face Plate Height
2.7 in
Maximum Wire Size
10 AWG
Dimensions
1.32 in x 1.06 in x 3.28 in
Width
1.06 in
Wire Size
#12 AWG to #10 AWG
Length
1.32 in
Display Size
Standard Sized Product
Height
3.28 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Ivory
Mount Type
Flush
Standards
CSA Certified C22.2, Federal Specification W-C-596, NEMA WD-6, UL 498
Resistance Properties
Weather Resistant
Flange Type
Non-Flanged
Surge Suppression
No
HP
1 hp
Corrosion Resistant
No
Tamper Resistant
No
Wiring Method - Plugs and Receptacles
Back and Side
Mounting Type
Flush
Outlet Type
Duplex
Power Indicator
No
Weather Resistant - Plugs and Receptacles
Yes
Material
Nylon
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Mounting Type - Plugs and Receptacles
Flush
NEMA Configuration
5-20
Sub-Category
Duplex Receptacles
Weather Resistant
Yes
Application Environment
Commercial
Voltage
125VAC
Outlet Type - Plugs and Receptacles
Standard Duplex
Number of Gangs
1
Type
Duplex
AFCI
No
GFCI
No
Maximum Operating Temperature
167 Degrees F
Polarized
Yes
Grade
Federal Specification
Shrouded
No
Connection Orientation
Straight
Cover Type
No Cover
Includes Mounting Hardware
Yes
Contact Material
Brass
Minimum Operating Temperature
-40 Degrees F
UL 94 Flammability Rating
V-2
Includes
Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover
Market
Commercial, Industrial
Horsepower Rating
1 hp
Housing Material
Nylon
NEMA Enclosure Rating
1
Surge Protection
No
Current Interrupting
Certified for current interrupting at full rated current
Mounting Screw Material
Steel-Zinc Plated
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current
Horsepower
1
Dielectric Voltage
Withstands 2,000V minimum
Other Available Colors
Brown, Ivory, White, Office White, Almond, Light Almond, Gray, Black
Power Contacts Material
.030" (.8) Brass
Base Material
Nylon
Flammability
UL 94 V-2
Receptacle Grade
Specification Grade Commercial Series, Weather Resistant
Device Color
Ivory
Face Shape
Traditional
Rating
20A, 125V
Mounting Strap Material
.040" (1) Steel (Galvanized)
Standard
NEMA
Auto Ground Clip Material
Stainless Steel
Receptacle Style
Duplex
Certification
UL Listed to UL498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-1 Heavy Duty and WD-6 requirements, Certified to CSA, C22.2, No. 42 file 285.
Terminal Accommodation
#12-#10 AWG copper stranded or solid conductor only
Top Material
Nylon
Poles and Wires
2 Pole, 3-Wire Grounding
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
OEM Brand Name
Hubbell Wiring Device-Kellems
Material - Mounting Hardware
Screw Mounting
Horsepower - Maximum
1
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Industry Standard(s)
Certified to CSA C22.2, No. 42 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Environmental Conditions
Weather Resistant
Nema Rating
5-20R
Style
Smooth Face
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-2 Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #12-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Application
Commercial Specification Grade
Series
Commercial Specification Grade
Wattage
2500 W
Dielectric Strength
Withstands 2,000V minimum

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Housing Color Ivory, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Weather Resistant, Standards CSA Certified C22.2, Federal Specification W-C-596, NEMA WD-6, UL 498, Voltage Rating 125V AC
