  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

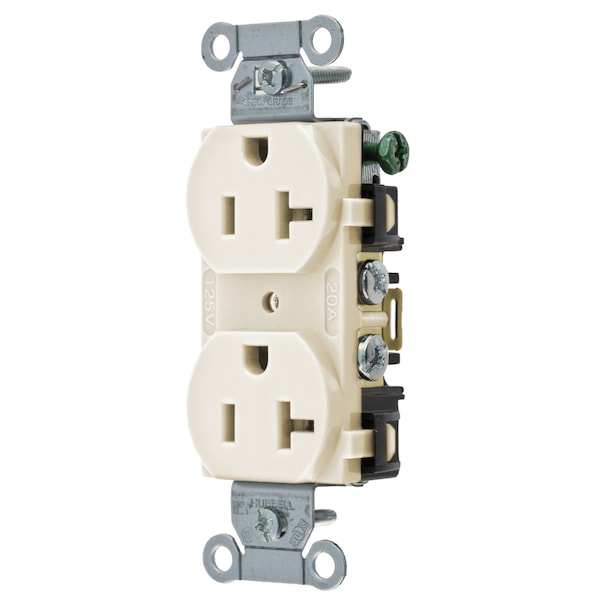

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded BR20LA - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # BR20LA

  • Zoro # G600702462

product price: $5.39
/ea
Sold in multiples of 2 for $10.78

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BR20LA
Zoro #
G600702462
UPC #
783585127576
Country of Origin
China

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Light Almond
Mount Type
Flush
Standards
CSA C22.2 No. 42, NEMA WD-6, UL 498, UL Federal Specification WC-596
Flange Type
Non-Flanged
Receptacle Style
Duplex
Base Material
Nylon
Dielectric Voltage
Withstands 2,000V minimum
Other Available Colors
Brown, Ivory, White, Office White, Almond, Light Almond, Gray, Black
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current
Terminal Accommodation
#12-#10 AWG copper stranded or solid conductor only
Power Contacts Material
.030" (.8) Brass
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Standard
NEMA
Poles and Wires
2 Pole, 3-Wire Grounding
Flammability
UL 94 V2.
Mounting Screw Material
Steel-Zinc Plated
Rating
20A, 125V
Horsepower
1
Top Material
Nylon
Current Interrupting
Certified for current interrupting at full rated current
Certification
UL Listed to UL498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-1 Heavy Duty and WD-6 requirements, Certified to CSA, C22.2, No. 42 file 285.
Product Type
Flush-receptacles
Face Shape
Traditional
Mounting Strap Material
.040" (1) Steel (Galvanized)
Receptacle Grade
Specification Grade Commercial Series
Device Color
Light Almond
Auto Ground Clip Material
Stainless Steel

Description

Hubbell Wiring Device Kellems, Straight Blade Devices, Receptacles,Duplex, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 20A 125V,5-20R, Light Almond, Single Pack
