  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

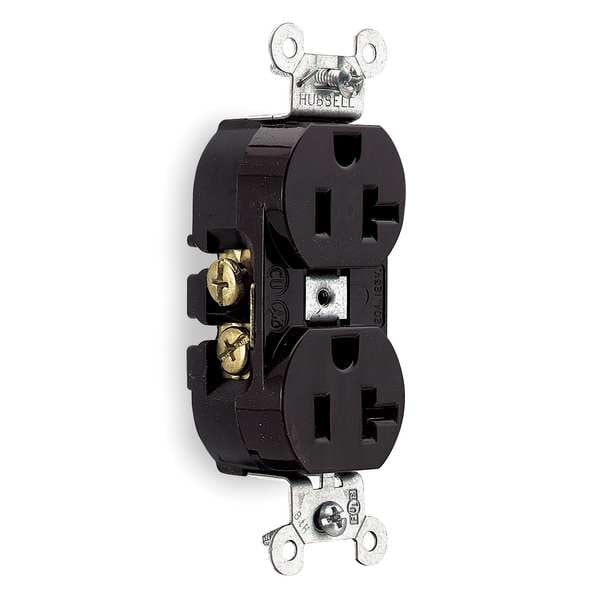

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded CR20 - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # CR20

  • Zoro # G2057246

product price: $2.69
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CR20
Zoro #
G2057246
UPC #
783585900100
Country of Origin
China

Dimensions

Mount Hole Center-to-Center Height
3.3 in
Minimum Wire Size
12 AWG
Overall Depth
3.3 in
Face Plate Width
1.3 in
Maximum Wire Size
10 AWG
Face Plate Height
2.7 in
Length
1.32 in
Dimensions
1.32 in x 0.83 in x 3.28 in
Display Size
Standard Sized Product
Wire Size
#12 AWG to #10 AWG
Height
3.28 in
Width
0.83 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Side
Grounding
Grounded
Housing Color
Brown
Mount Type
Flush
IP Rating
Not Rated
Standards
CSA Certified C22.2, Federal Specification W-C-596, NEMA WD-6, UL 498
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Application Environment
Commercial
Surge Suppression
No
Mounting Type
Flush
Outlet Type - Plugs and Receptacles
Standard Duplex
Wiring Method - Plugs and Receptacles
Side
Mounting Type - Plugs and Receptacles
Flush
HP
1 hp
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Weather Resistant
No
Outlet Type
Duplex
Corrosion Resistant
No
Number of Gangs
1
Voltage
125VAC
NEMA Configuration
5-20
Sub-Category
Duplex Receptacles
Material
Nylon
Tamper Resistant
No
Power Indicator
No
Weather Resistant - Plugs and Receptacles
No
Type
Duplex
Includes Mounting Hardware
Yes
Cover Type
No Cover
Maximum Operating Temperature
167 Degrees F
Housing Material
Nylon
GFCI
No
Market
Commercial
Includes
Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover
Polarized
Yes
Shrouded
No
Contact Material
Brass
NEMA Enclosure Rating
1
UL 94 Flammability Rating
V-2
Horsepower Rating
1 hp
Grade
Federal Specification
Connection Orientation
Straight
For Location
Indoor
AFCI
No
Surge Protection
No
Minimum Operating Temperature
-40 Degrees F
Terminal Accommodation
#12-#10 AWG copper stranded or solid conductor only
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Face Style
Smooth Face
Terminal Screw Material
#8-32 Brass, Multiple Drive
Horsepower
1
Power Contacts Material
.031" (.8) Phosphor Bronze
Top Material
Nylon
Dielectric Voltage
Withstands 2,000V minimum
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Mounting Screw Material
Steel-Zinc Plated
Flammability
UL 94 V2.
Ground Screw Material
#8-32 Brass, Multiple Drive (Green)
Other Available Colors
Brown, Almond, Black, Gray, Ivory, Office White, White, Light Almond
Current Interrupting
Certified for current interrupting at full rated current
Certification
UL Listed, File E2186, Meets NEMA WD-6 requirements Listed to UL Standard 498, Certified to CSA, C22.2, No. 42
Receptacle Style
Duplex
Rating
20A, 125V
Auto Ground Clip Material
.032" (.8) Steel Wire
Face Shape
Traditional
Base Material
Nylon
Receptacle Grade
Commercial Series Specification Grade
Standard
NEMA
Device Color
Brown
Poles and Wires
2 Pole, 3-Wire Grounding
Mounting Strap Material
.040" (1) Steel (Galvanized)
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Application
Commercial Specification Grade
Nema Rating
5-20R
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-2 Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #12-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Wattage
2500 W
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Horsepower - Maximum
1
Dielectric Strength
Withstands 2,000V minimum
Series
Commercial Specification Grade
Industry Standard(s)
Certified to CSA, C22.2, No. 42 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Material - Mounting Hardware
Screw Mounting
OEM Brand Name
Hubbell Wiring Device-Kellems
Style
Smooth Face

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Housing Color Brown, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Standards CSA Certified C22.2, Federal Specification W-C-596, NEMA WD-6, UL 498, Voltage Rating 125V AC, Wire Connection Type Screw Terminals
