- Item

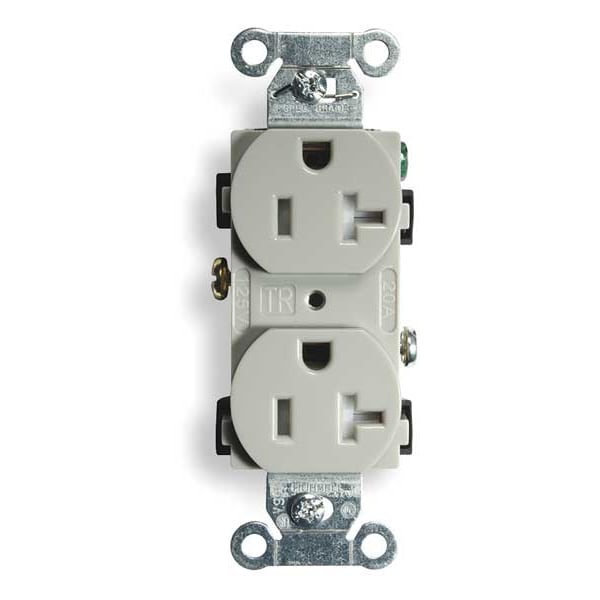

- Straight Blade Receptacle
- Receptacle Type
- Duplex
- NEMA Receptacle Configuration
- 5-20R
- Current Rating
- 20 A
- Voltage Rating
- 125V AC
- Phase
- Single
- Number of Poles
- 2
- Number of Wires
- 3
- Wire Connection Type
- Screw Terminals
- Wiring Method
- Side
- Grounding
- Grounded
- Housing Color
- Gray
- Mount Type
- Flush
- Standards
- CSA Certified C22.2, NEMA WD-6, UL 498
- Resistance Properties
- Tamper Resistant
- Flange Type
- Non-Flanged
- Application Environment
- Commercial
- Wiring Method - Plugs and Receptacles
- Side
- Corrosion Resistant
- No
- Mounting Type - Plugs and Receptacles
- Flush
- NEMA Configuration
- 5-20
- Number of Gangs
- 1
- Tamper Resistant
- Yes
- Weather Resistant - Plugs and Receptacles
- No
- Sub-Category
- Duplex Receptacles
- HP
- 1 hp
- Outlet Type - Plugs and Receptacles
- Standard Duplex
- Outlet Type
- Duplex
- Mounting Type
- Flush
- NEMA Receptacle Configuration - Plugs and Receptacles
- 5-20R
- Weather Resistant
- No
- Surge Suppression
- No
- Material
- Nylon
- Voltage
- 125VAC
- Power Indicator
- No
- Type
- Duplex
- NEMA Enclosure Rating
- 1
- Includes
- Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover
- Housing Material
- Nylon
- Market
- Commercial
- Grade
- Federal Specification
- GFCI
- No
- For Location
- Indoor
- Contact Material
- Brass
- Minimum Operating Temperature
- -40 Degrees F
- Horsepower Rating
- 1 hp
- Surge Protection
- No
- UL 94 Flammability Rating
- V-2
- Connection Orientation
- Straight
- Includes Mounting Hardware
- Yes
- Shrouded
- No
- AFCI
- No
- Cover Type
- No Cover
- Polarized
- Yes
- Maximum Operating Temperature
- 167 Degrees F
- Face Style
- Smooth Face
- Receptacle Grade
- Commercial Series Specification Grade, Tamper Resistant
- Operating Temperatures
- Maximum continuous 75°C; minimum -40°C (w/o impact)
- Certification
- UL Listed, File E2186, Meets NEMA WD-6 requirements Listed to UL Standard 498, Certified to CSA, C22.2, No. 42
- Current Interrupting
- Certified for current interrupting at full rated current
- Ground Screw Material
- #8-32 Brass, Multiple Drive
- Other Available Colors
- Brown, Almond, Black, Gray, Ivory, Office White, White, Light Almond
- Dielectric Voltage
- Withstands 2,000V minimum
- Terminal Screw Material
- #8-32 Brass, Multiple Drive
- Temperature Rise
- Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
- Receptacle Style
- Duplex
- Face Shape
- Traditional
- Top Material
- Nylon
- Mounting Strap Material
- .040" (1) Steel (Galvanized)
- Terminal Identification
- Terminals identified in accordance with UL 498 and CSA
- Base Material
- Nylon
- Auto Ground Clip Material
- .032" (.8) Steel Wire
- Flammability
- UL 94 V-2
- Device Color
- Gray
- Horsepower
- 1
- Poles and Wires
- 2 Pole, 3-Wire Grounding
- Standard
- NEMA
- Rating
- 20A, 125V
- Mounting Screw Material
- Steel-Zinc Plated
- Terminal Accommodation
- #12-#10 AWG copper stranded or solid conductor only
- Power Contacts Material
- .031" (.8) Phosphor Bronze
- Industry Standard(s)
- Certified to CSA, C22.2, No. 42
NEMA® WD-6 Compliant
UL Listed to UL498 File No. E2186
- Nema Rating
- 5-20R
- OEM Brand Name
- Hubbell Wiring Device-Kellems
- Series
- Commercial Specification Grade
- Material - Mounting Hardware
- Screw Mounting
- Horsepower - Maximum
- 1
- Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current
Electrical - Dielectric Voltage - Withstands 2,000V minimum
Environmental - Flammability - UL 94 V-2
Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact)
Mechanical - Product Identification - Ratings are a permanent part of the device
Mechanical - Terminal Accommodation - #12-#10 AWG copper stranded or solid conductor only
Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
- Style
- Smooth Face
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Wattage
- 2500 W
- Dielectric Strength
- Withstands 2,000V minimum
- Application
- Commercial Specification Grade
