  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

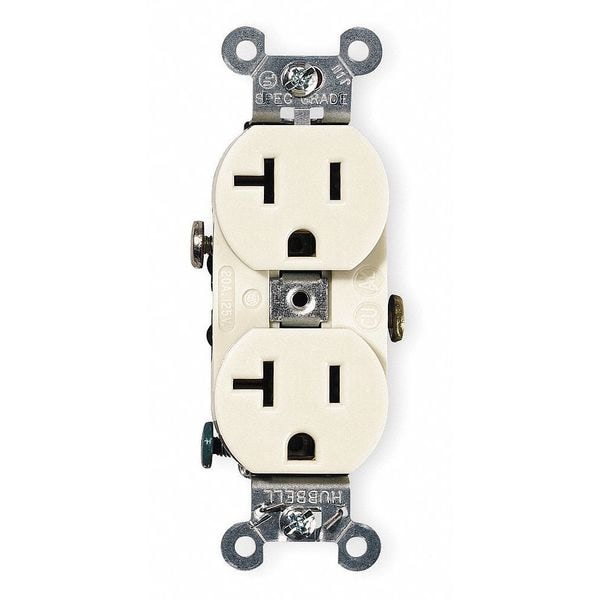

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded CR20I - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # CR20I

  • Zoro # G0783946

product price: $3.75
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CR20I
Zoro #
G0783946
UPC #
783585900155
Country of Origin
China

Dimensions

Minimum Wire Size
12 AWG
Mount Hole Center-to-Center Height
3.3 in
Face Plate Width
1.3 in
Face Plate Height
2.7 in
Overall Depth
3.3 in
Maximum Wire Size
10 AWG
Width
0.83 in
Dimensions
1.32 in x 0.83 in x 3.28 in
Height
3.28 in
Wire Size
#12 AWG to #10 AWG
Length
1.32 in
Display Size
Standard Sized Product

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Side
Grounding
Grounded
Housing Color
Ivory
Mount Type
Flush
Standards
CSA Certified C22.2, Federal Specification W-C-596, NEMA WD-6, UL 498
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Tamper Resistant
No
Outlet Type - Plugs and Receptacles
Standard Duplex
NEMA Configuration
5-20
Number of Gangs
1
Wiring Method - Plugs and Receptacles
Side
Surge Suppression
No
Mounting Type - Plugs and Receptacles
Flush
Mounting Type
Flush
Outlet Type
Duplex
Weather Resistant
No
Corrosion Resistant
No
Weather Resistant - Plugs and Receptacles
No
Voltage
125VAC
Power Indicator
No
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
HP
1 hp
Material
Nylon
Application Environment
Commercial
Sub-Category
Duplex Receptacles
Type
Duplex
UL 94 Flammability Rating
V-2
Maximum Operating Temperature
167 Degrees F
Market
Commercial
Polarized
Yes
AFCI
No
Shrouded
No
Housing Material
Nylon
Includes Mounting Hardware
Yes
Horsepower Rating
1 hp
Grade
Federal Specification
Surge Protection
No
Connection Orientation
Straight
Includes
Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover
Cover Type
No Cover
Minimum Operating Temperature
-40 Degrees F
For Location
Indoor
GFCI
No
NEMA Enclosure Rating
1
Contact Material
Brass
Flammability
UL 94 V-2
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Power Contacts Material
.031" (.8) Phosphor Bronze
Terminal Accommodation
#12-#10 AWG copper stranded or solid conductor only
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Mounting Strap Material
.040" (1) Steel (Galvanized)
Base Material
Nylon
Device Color
Ivory
Certification
UL Listed, File E2186, Meets NEMA WD-6 requirements Listed to UL Standard 498, Certified to CSA, C22.2, No. 42
Current Interrupting
Certified for current interrupting at full rated current
Other Available Colors
Brown, Almond, Black, Gray, Ivory, Office White, White, Light Almond
Top Material
Nylon
Receptacle Grade
Commercial Series Specification Grade
Receptacle Style
Duplex
Face Style
Smooth Face
Poles and Wires
2 Pole, 3-Wire Grounding
Mounting Screw Material
Steel-Zinc Plated
Auto Ground Clip Material
.032" (.8) Steel Wire
Terminal Screw Material
#8-32 Brass, Multiple Drive
Ground Screw Material
#8-32 Brass, Multiple Drive (Green)
Rating
20A, 125V
Horsepower
1
Dielectric Voltage
Withstands 2,000V minimum
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Face Shape
Traditional
Standard
NEMA
OEM Brand Name
Hubbell Wiring Device-Kellems
Series
Commercial Specification Grade
Application
Commercial Specification Grade
Wattage
2500 W
Dielectric Strength
Withstands 2,000V minimum
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-2 Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #12-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Industry Standard(s)
Certified to CSA, C22.2, No. 42 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Material - Mounting Hardware
Screw Mounting
Nema Rating
5-20R
Style
Smooth Face
Horsepower - Maximum
1

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Housing Color Ivory, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Standards CSA Certified C22.2, Federal Specification W-C-596, NEMA WD-6, UL 498, Voltage Rating 125V AC, Wire Connection Type Screw Terminals
