  6. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

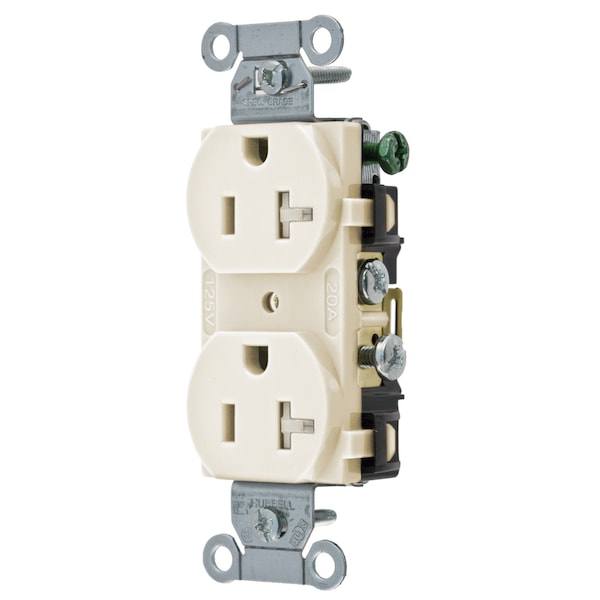

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded CR20LATR - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # CR20LATR

  • Zoro # G300701369

product price:  $8.75
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CR20LATR
Zoro #
G300701369
UPC #
783585144313
Country of Origin
China

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Side
Grounding
Grounded
Housing Color
Light Almond
Mount Type
Flush
Standards
CSA Certified C22.2, NEMA WD-6, UL 498
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Other Available Colors
Brown, Almond, Black, Gray, Ivory, Office White, White, Light Almond
Face Style
Smooth Face
Rating
20A, 125V
Mounting Screw Material
Steel-Zinc Plated
Standard
NEMA
Receptacle Style
Duplex
Terminal Screw Material
#8-32 Brass, Multiple Drive
Current Interrupting
Certified for current interrupting at full rated current
Horsepower
1
Auto Ground Clip Material
.032" (.8) Steel Wire
Mounting Strap Material
.040" (1) Steel (Galvanized)
Dielectric Voltage
Withstands 2,000V minimum
Flammability
UL 94 V-2
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Top Material
Nylon
Ground Screw Material
#8-32 Brass, Multiple Drive
Power Contacts Material
.031" (.8) Phosphor Bronze
Product Type
Flush-receptacles
Certification
UL Listed, File E2186, Meets NEMA WD-6 requirements Listed to UL Standard 498, Certified to CSA, C22.2, No. 42
Device Color
Light Almond
Base Material
Nylon
Terminal Accommodation
#12-#10 AWG copper stranded or solid conductor only
Face Shape
Traditional
Receptacle Grade
Commercial Series Specification Grade, Tamper Resistant
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Poles and Wires
2 Pole, 3-Wire Grounding

Description

Hubbell Wiring Device Kellems, Straight Blade Devices, Receptacles,Tamper-Resistant Duplex, Commercial Grade, 2-Pole 3-Wire Grounding, 20A125V, 5-20R, Light Almond, SinglePack
