  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

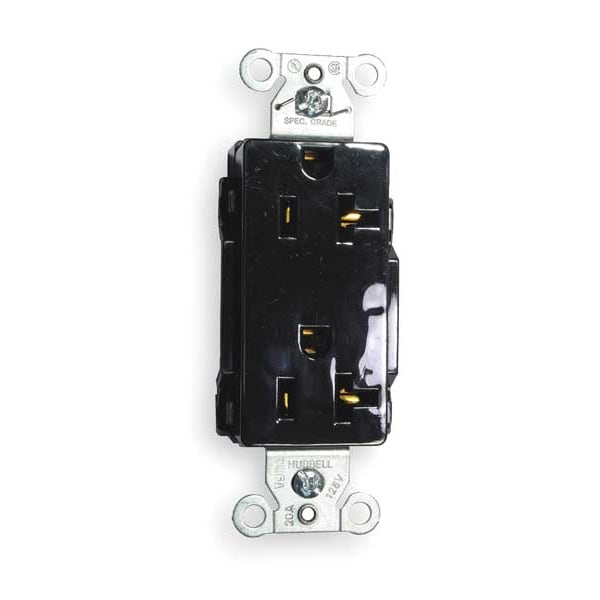

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded DR20BLK - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # DR20BLK

  • Zoro # G0372872

product price: $8.19
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DR20BLK
Zoro #
G0372872
UPC #
783585127910
Country of Origin
China

Dimensions

Mount Hole Center-to-Center Width
1.3 in
Overall Depth
1.3 in
Maximum Wire Size
10 AWG
Minimum Wire Size
12 AWG
Face Plate Height
2.7 in
Face Plate Width
1.3 in
Mount Hole Center-to-Center Height
2.7 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Black
Mount Type
Flush
Standards
CSA C22.2 No. 42, NEMA WD-6, UL 498, UL Federal Specification WC-596
Flange Type
Non-Flanged
Number of Gangs
1
Wiring Method - Plugs and Receptacles
Back and Side
Power Indicator
No
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Outlet Type
Decorator
Sub-Category
Duplex Receptacles
Corrosion Resistant
No
Outlet Type - Plugs and Receptacles
Decorator Duplex
HP
1 hp
Application Environment
Commercial
Voltage
125VAC
Mounting Type
Flush
Tamper Resistant
No
Mounting Type - Plugs and Receptacles
Flush
Surge Suppression
No
Material
Nylon
Weather Resistant
No
NEMA Configuration
5-20
Weather Resistant - Plugs and Receptacles
No
Type
Duplex
Polarized
Yes
Housing Material
Nylon
Includes Mounting Hardware
Yes
Grade
Federal Specification
Maximum Operating Temperature
167 Degrees F
Connection Orientation
Straight
NEMA Enclosure Rating
1
Surge Protection
No
GFCI
No
Shrouded
No
Market
Commercial, Industrial
AFCI
No
Minimum Operating Temperature
-40 Degrees F
Cover Type
No Cover
Horsepower Rating
1 hp
UL 94 Flammability Rating
V-2
Includes
Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover
For Location
Indoor
Contact Material
Brass
Current Interrupting
Certified for current interrupting at full rated current
Poles and Wires
2 Pole, 3-Wire Grounding
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Auto Ground Clip Material
Stainless Steel
Device Color
Black
Dielectric Voltage
Withstands 2,000V minimum
Ground Screw Material
#8-32 Brass, Multiple Drive
Certification
UL Listed, File E2186, Meets NEMA WD-6 requirements Listed to UL Standard 498, Certified to CSA, C22.2, No. 42
Receptacle Grade
StyleLine Decorator Series, Specification Grade
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Mounting Strap Material
.040" (1) Steel (Galvanized)
Base Material
Nylon
Top Material
Nylon
Power Contacts Material
.030" (.8) Brass
Flammability
UL 94 V-2
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Terminal Screw Material
#8-32 Brass, Multiple Drive
Rating
20A, 125V
Other Available Colors
Brown, Ivory, White, Office White, Almond, Light Almond, Gray, Black
Face Shape
Decorator
Face Style
Smooth Face
Mounting Screw Material
Steel-Zinc Plated
Horsepower
1
Terminal Accommodation
#12-#10 AWG copper stranded or solid conductor only
Standard
NEMA

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Housing Color Black, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Standards CSA Certified C22.2, Federal Specification W-C-596, NEMA WD-6, UL 498, Voltage Rating 125V AC
