  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

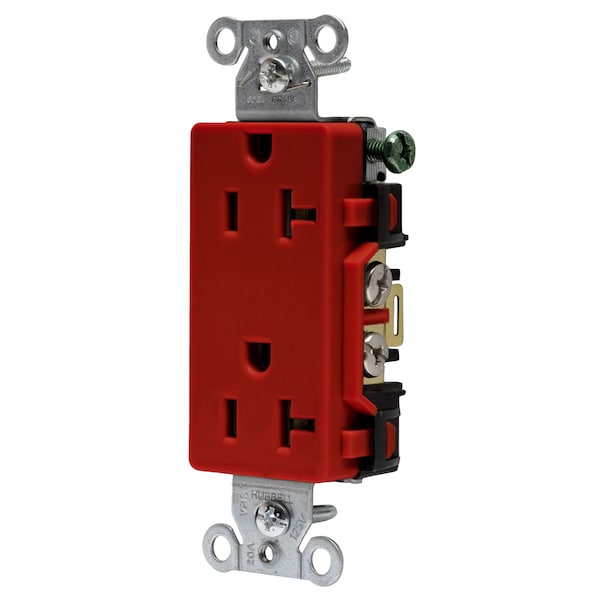

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded DR20R - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # DR20R

  • Zoro # G700701891

product price: $7.75
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DR20R
Zoro #
G700701891
UPC #
783585197593
Country of Origin
China

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Red
Mount Type
Flush
Standards
CSA C22.2 No. 42, NEMA WD-6, UL 498, UL Federal Specification WC-596
Flange Type
Non-Flanged
Device Color
Red
Wire Clamp
.062 in. (1.6) Nickel plated steel
Power Contacts
.030 in. (.8) Brass
Current Interrupting
Certified for current interrupting at full rated current
Base
Nylon
Terminal Accommodation
#12-#10 AWG copper stranded or solid conductor only
Ground Contacts
Brass
Dielectric Voltage
Withstands 2,000V minimum
Automatic Self-grounding Staple
Stainless steel
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Terminal Screws
Plated steel
Mounting Screws
Galvanized Steel
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Mounting Strap
.040 in. (1) Galvanized steel
Face
Nylon
Flammability
UL 94 V-2

Description

Hubbell Wiring Device Kellems, Straight Blade Devices, Decorator DuplexReceptacle, Commercial Grade, Smooth Face, 20A 125V, 2-Pole 3-WireGrounding, 5-20R, Side Wired Only, Red
