  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

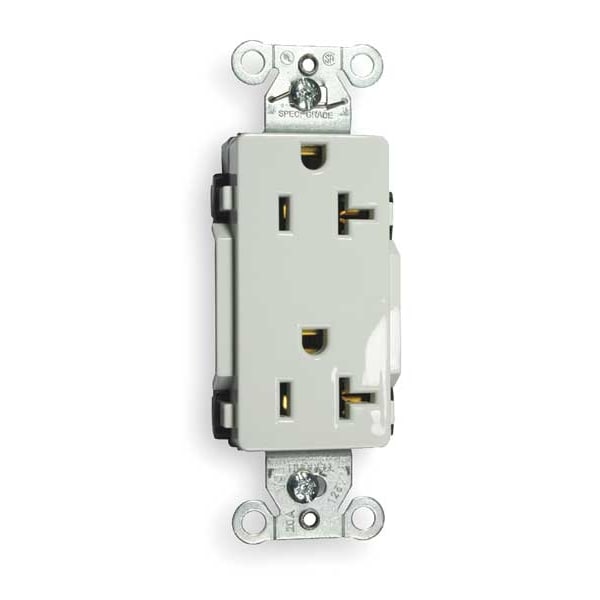

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded DR20WHI - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # DR20WHI

  • Zoro # G0313923

product price: $8.19
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DR20WHI
Zoro #
G0313923
UPC #
783585127903
Country of Origin
China

Dimensions

Mount Hole Center-to-Center Width
1.3 in
Face Plate Width
1.3 in
Face Plate Height
2.7 in
Minimum Wire Size
12 AWG
Mount Hole Center-to-Center Height
2.7 in
Maximum Wire Size
10 AWG
Overall Depth
1.3 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
White
Mount Type
Flush
Standards
CSA C22.2 No. 42, NEMA WD-6, UL 498, UL Federal Specification WC-596
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Sub-Category
Duplex Receptacles
Wiring Method - Plugs and Receptacles
Back and Side
Tamper Resistant
No
Mounting Type
Flush
Material
Nylon
Mounting Type - Plugs and Receptacles
Flush
NEMA Configuration
5-20
HP
1 hp
Outlet Type
Decorator
Outlet Type - Plugs and Receptacles
Decorator Duplex
Voltage
125VAC
Number of Gangs
1
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Corrosion Resistant
No
Power Indicator
No
Weather Resistant - Plugs and Receptacles
No
Application Environment
Commercial
Surge Suppression
No
Weather Resistant
No
Type
Duplex
Minimum Operating Temperature
-40 Degrees F
Connection Orientation
Straight
Maximum Operating Temperature
167 Degrees F
Market
Commercial, Industrial
AFCI
No
Includes Mounting Hardware
Yes
Polarized
Yes
Contact Material
Brass
Cover Type
No Cover
Horsepower Rating
1 hp
GFCI
No
Includes
Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover
NEMA Enclosure Rating
1
For Location
Indoor
Housing Material
Nylon
Shrouded
No
UL 94 Flammability Rating
V-2
Grade
Federal Specification
Surge Protection
No
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Power Contacts Material
.030" (.8) Brass
Mounting Screw Material
Steel-Zinc Plated
Face Style
Smooth Face
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Standard
NEMA
Poles and Wires
2 Pole, 3-Wire Grounding
Current Interrupting
Certified for current interrupting at full rated current
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Other Available Colors
Brown, Ivory, White, Office White, Almond, Light Almond, Gray, Black
Terminal Screw Material
#8-32 Brass, Multiple Drive
Base Material
Nylon
Terminal Accommodation
#12-#10 AWG copper stranded or solid conductor only
Face Shape
Decorator
Top Material
Nylon
Device Color
White
Flammability
UL 94 V-2
Mounting Strap Material
.040" (1) Steel (Galvanized)
Dielectric Voltage
Withstands 2,000V minimum
Horsepower
1
Rating
20A, 125V
Receptacle Grade
StyleLine Decorator Series, Specification Grade
Ground Screw Material
#8-32 Brass, Multiple Drive
Auto Ground Clip Material
Stainless Steel
Certification
UL Listed, File E2186, Meets NEMA WD-6 requirements Listed to UL Standard 498, Certified to CSA, C22.2, No. 42

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Housing Color White, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Standards CSA Certified C22.2, Federal Specification W-C-596, NEMA WD-6, UL 498, Voltage Rating 125V AC
