  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

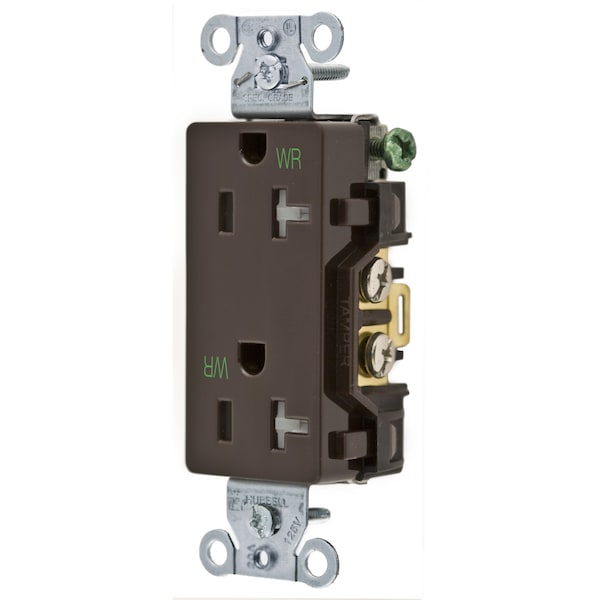

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded DR20WRTR - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # DR20WRTR

  • Zoro # G700701969

product price: $16.39
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DR20WRTR
Zoro #
G700701969
UPC #
783585144818
Country of Origin
China

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Brown
Mount Type
Flush
Standards
C22.2, Certified to CSA, File E2186, Meets NEMA WD-6 requirements Listed to UL Standard 498, No. 42, UL Listed
Resistance Properties
Tamper Resistant, Weather Resistant
Flange Type
Non-Flanged
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Power Contacts Material
.030" (.8) Brass
Horsepower
1
Mounting Strap Material
.040" (1) Steel (Galvanized)
Top Material
Nylon
Rating
20A, 125V
Other Available Colors
Brown, Ivory, White, Office White, Almond, Light Almond, Gray, Black
Auto Ground Clip Material
Stainless Steel
Receptacle Grade
StyleLine Decorator Series, Specification Grade, Tamper and Weather Resistant
Current Interrupting
Certified for current interrupting at full rated current
Ground Screw Material
#8-32 Brass, Multiple Drive
Mounting Screw Material
Steel-Zinc Plated
Flammability
UL 94 V2.
Face Shape
Decorator
Terminal Screw Material
#8-32 Brass, Multiple Drive
Standard
NEMA
Terminal Accommodation
#12-#10 AWG copper stranded or solid conductor only
Device Color
Brown
Face Style
Smooth Face
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Poles and Wires
2 Pole, 3-Wire Grounding
Base Material
Nylon
Dielectric Voltage
Withstands 2,000V minimum
Product Type
Flush-receptacles
Certification
UL Listed, File E2186, Meets NEMA WD-6 requirements Listed to UL Standard 498, Certified to CSA, C22.2, No. 42
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..

Description

Hubbell Wiring Device Kellems, Straight Blade Devices, Receptacles,Weather and Tamper-Resistant Duplex, Decorator/Commercial/IndustrialGrade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Brown, Single Pack
